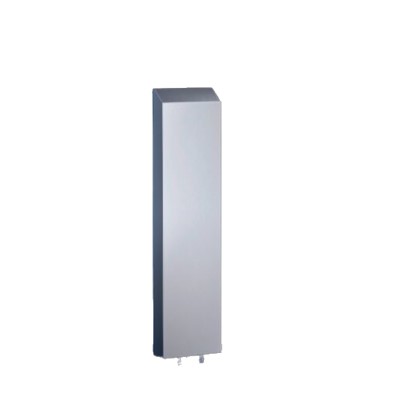

Wall mounted air/water heat exchanger
Product Code :SK 3216.480
The power rating is 7000 W. For use in harsh environments. Solenoid valve with automatic temperature control.
Product description: For use in harsh environments and ambient conditions with temperatures up to +70 °C. Equipped with automatic temperature control solenoid valve.
Material: Copper/brass (Cu/CuZn)
Color: RAL 7035
Scope of Supply:
wired
Sealing and fixing material
Total cooling power: L 35 W 10: 7 kW at 500 l/h
Rated operating voltage:
400 V, 3~, 50 Hz/60 Hz
480 V, 3~, 60 Hz
460 V AC
Maximum rated current:
At 50 Hz: 1.4A
At 60 Hz: 1.6A1.2A
Allowable working pressure (p Max) : 1 ‐ 10 bar
Switch on duration: 100%
Cooling medium: Water (see our website for specifications)
Inlet temperature: 1 °C... 30 °C
Water connection port:
½" hose connection
G ⅜" AG:
Temperature regulator: temperature control solenoid valve
Temperature monitoring: Built-in regulator with temperature setting, switching power 16 A, setting range +20 °C... +60 °C (Factory setting +35 °C)
Operating temperature range: 1 °C... 70 °C
Description: Use 3-pole automatic safety device
Size:
Width: 450 mm
Height: 1,800 mm
Depth: 300 mm
Instructions on order number: For delivery time, please contact us
Front fuse: Automatic fuse/fuse: 4 A
Front fuse: Motor protection switch: 1.4... 2 A
Adjustment range: 20 °C... 55 °C
Protection class IP, according to EN 60 529: IP 55
Packing unit: 1 piece
Weight/Packing: 79 kg
Tax number: 84195080
EAN: 4028177458642
ETIM 7.0: EC002515
ECLASS 8.0:27180712
Product Description: SK AIR WATER heat exchanger
