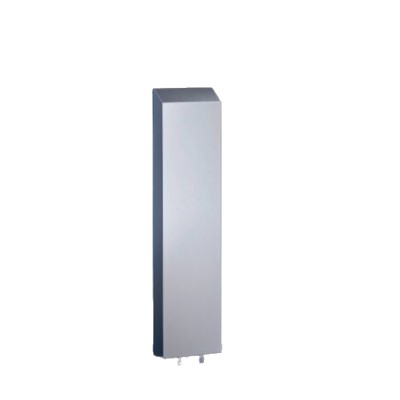

Air/water heat exchanger wall mounted HD
Product Code :SK 3215.700
The air/water heat exchanger is used in the food and tobacco industries where hygiene requirements are extremely high - Rittal's typical hygienic design. The easy-to-clean structure reduces the risk of contamination and ensures food safety.
Product Description:
Air/water heat exchangers are used in the food and tobacco industries where hygiene requirements are high - Rittal's optimal hygiene design. The easy-to-clean structure reduces the risk of contamination and ensures food safety.
Your benefits:
Easy to clean and hygienic structure
Top slope 30° tilt, avoid placing objects and liquid can flow out quickly
Interchangeable silicone seals on all sides avoid fouling in the housing and air/water heat exchangers.
Material: Box: Stainless steel 1.4301 (AISI 304)
Surface: Box: wire drawing, particle size 400, roughness < 0.8μm
Scope of Supply:
The cable is connected
Borehole template
Sealing and fixing material
Total cooling power:
At 200 l/h L 35 W 10: 1 kW
At 400 l/h L 35 W 10: 1.2 kW
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Rated power Pel:
At 50 Hz: 77 W
At 60 Hz: 104 W
Maximum rated current:
At 50 Hz: 0.38 A
At 60 Hz: 0.47A
Allowable working pressure (p Max) : 1 ‐ 10 bar
Switch on duration: 100%
Cooling medium: Water (see our website for specifications)
Inlet temperature: 1 °C... 30 °C
Water connector: G ⅜" AG
Temperature regulator: temperature control solenoid valve
Temperature monitoring: Built-in regulator with temperature setting, switching power 16 A, setting range +20 °C... +60 °C (Factory setting +35 °C)
Operating temperature range: 1 °C... 70 °C
Note: In order to meet the protection level IP 66/69 of IEC 60 529, leakage of air through the condensate discharge outlet must be completely avoided.
Size:
Width: 215 mm
Height: 982 mm
Depth: 100 mm
Front fuse: Automatic fuse/fuse: 4 A
Adjustment range: 20 °C... 60 °C
Protection class IP, according to EN 60 529: IP 56/59
Protection category NEMA: NEMA 4X
Packing unit: 1 piece
Weight/Packing: 14 kg
Tax number: 84195080
EAN: 4028177806405
ETIM 7.0: EC002515
ECLASS 8.0:27180712
Product Description: Air/Water heat exchanger, 1300 W
