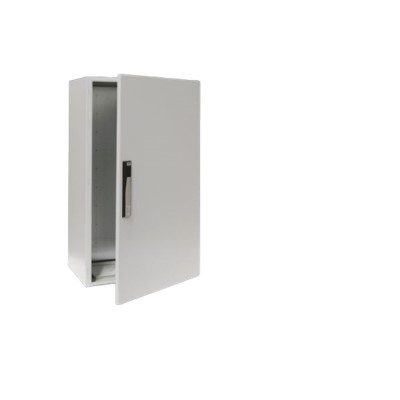

Tight-mounted system cabinet CM.
Article number: CM 5111.500.
The box body is equipped with steel plate doors and mounting plates, and the open bottom space is used for bottom plate installation.
Protection level IP 55.
The expansion choice of Weitu compact control cabinet and a variety of parallel cabinet system TS 8 makes the box can be integrated with each other.
The door hole bar inside the box door can be used to quickly fix the support rail, cable hose bracket and sealing plate.
Materials:
Box: steel plate 1.5mm.
Door: steel plate, 2.0 mm, surrounded by foam polyurethane plastic (PU) sealing ring.
Mounting plate: steel plate, 3.0 mm.
Surface:
Box and door: dip primer, powder coating, texture.
Mounting plate: galvanized.
Color: RAL 7035.
Scope of supply:
Box with hinged door.
Three-point lock system with double-toothed lock core.
Mounting plate.
Open bottom for personalized cable introduction.
Protection level NEMA: NEMA 12 when selecting the appropriate backplane or end plate.
Protection rating IP, conforming to EN 60529: protection rating IP 55 when selecting the appropriate backplane or end plate.
IK coding: IK08.
Dimensions:
Width: 600 mm.
Height: 1000 mm.
Depth: 400 mm.
Mounting plate size (W x H): 540 mm x 955 mm.
Number of doors: 1.
Door hinges are movable: yes.
Basic material: steel plate.
Packing unit: 1 piece.
Weight / packing: 49 kg.
Tax rate number: 94032080.
EAN:4028177479692.
ETIM 7.0:EC000261.
ECLASS 8.0:27180101.
Product description: CM compact system control box 061004 7035
