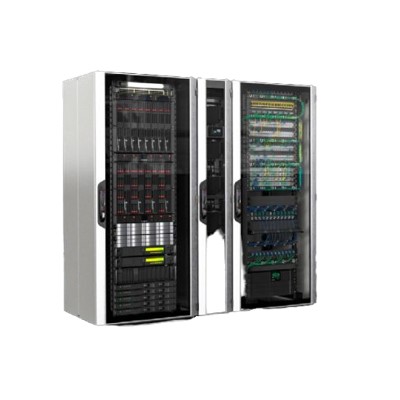

Liquid Cooling cabinet (LCP) LCP Rack CW, LCP Rack CWG
Product Code :SK 3313.230
Cooling is carried out by high-performance tight-fitting impeller blades. The LCP pumps air from the back side of the server cabinet and blows cooled air into the front side of the server cabinet.
Type: CW
Your benefits:
Energy efficiency is maximised with EC fan technology and IT-oriented regulators
Minimizes wind pressure loss and reduces fan energy consumption
Control the server air intake temperature
The air side is equipped with multiple redundant temperature probes
The optimal regulation capacity is achieved by dynamically and continuously adjusting the chilled water flow
The use of high inlet temperature can improve indirect free cooling efficiency, thereby reducing operating costs.
A modular fan unit is used to achieve the desired cooling efficiency
Fan modules can be configured in n+1 redundancy mode
The standard three-phase interface is used for electrical redundancy
The cooling device is separated from the cabinet to prevent water from entering the server cabinet
Underside for all cooling power, size up to 0.36 m²
When applying the LCP CW glycol specification, heat recovery efficiency is improved through higher water return temperatures, for example by connecting a heat pump
Provides better repair and service operations from the front and rear
A fan module can be replaced without a tool
Mode of action:
The high-temperature air discharged from the vent at the back of the server is pumped out from the rear inlet air side of the liquid cooling cabinet (LCP), and the high-temperature air is cooled into low-temperature air through the LCP evaporator, and then the air is newly blown from the front outlet air of the LCP to the front inlet air side of the server to complete an air circulation
Material: Steel plate, spray paint
Color: RAL 7035
Options:
Fully integrated smoke detection and fire suppression system
Automatic door opening system of server cabinet
Auxiliary CMC III sensors can be connected directly
The height of the cabinet is 2200 mm
Type: Cabinet cooling device
Monitoring system:
Monitor all system related parameters, such as server exhaust/supply air temperature, inlet/return water temperature, water flow rate, cooling power, fan speed, and leakage
Connect the device directly through Ethernet /SNMP
You can add RIzones for management
Total cooling power/Number of fan modules:
10 kW/1
20 kW/2
30 kW/3
Air flow (free air supply) : Air flow at 50 Hz: 4,800 m³/h
Number of fans: 1
Size:
Width: 300 mm
Height: 2,000 mm
Depth: 1,200 mm
Suitable for box type: VX IT
Installed on parallel cabinets: flush
Rated operating voltage:
200 V - 240 V, 1~, 50 Hz/60 Hz
346 V - 415 V, 3~, 50 Hz
346 V - 415 V, 3~, 60 Hz
Maximum cooling power: 30 kW
Connection mode: Connect the plug
Switch on duration: 100%
Cooling medium: water
EC fan: Yes
The fan can be replaced in running mode: Yes
Temperature regulator:
Stepless fan adjustment
Double way control ball valve
Water connection: DN 40 (G 1½" AG)
Allowable working pressure (p Max) : 10 bar
Water inlet temperature: 15 °C
Protection class IP, according to EN 60 529: IP 20
Packing unit: 1 piece
Weight/Packing: 230 kg
Tax number: 84195080
EAN: 4028177953888
ETIM 7.0: EC002515
ECLASS 8.0:27180712
Product Description: LCP Rack CW, 30 kW, flush, RAL 7035, W x H x D: 300x2000x1200 mm
