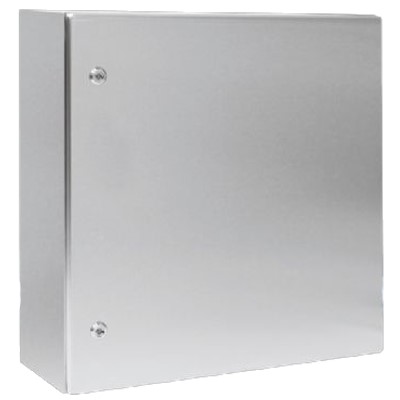

AE stainless steel compact housing, including mounting plate.
Product Code :AE 1010.500
Materials:
Case: stainless steel
Door: stainless steel with foamed polyurethane plastic seals on all sides
Mounting plate: steel plate
Stainless Steel 1.4404 (AISI 316L)
Surface:
Box and door: brushed, particle size 400, roughness < 0.8μm
Mounting plate: galvanized
Scope of Supply:
Box with door
Mounting plate
Lock: 3 mm double teeth
Protection Level NEMA:NEMA 4X
Protection class IP, according to EN 60 529 :IP 66
IK code :IK08
Size:
Width: 600 mm
Height: 600 mm
Depth: 210 mm
Mounting plate dimensions (W x H) :549 mm x 570 mm
Number of doors :1
Number of locks :2
Lock:
Lock specification: flange
Number of locks: 2
Lock core: 3 mm double teeth
Material lock: Stainless Steel 1.4404 (AISI 316L)
Basic material: stainless steel
Packing unit :1 piece
Weight/Packing: 23.5kg
Tax code :94032080
Custom Tariff Number China (deviation to global nr):Differing customs tariff number for China: 85380000
EAN:4028177421325
ETIM 7.0:EC000261
ECLASS 8.0:27180101
Product description :AE1010 cabinet 600X600X210
