Total cooling power of TopTherm Blue e for top-mounted air conditioners is 0.50-4.00 kW.
Article number: SK 3384.640.

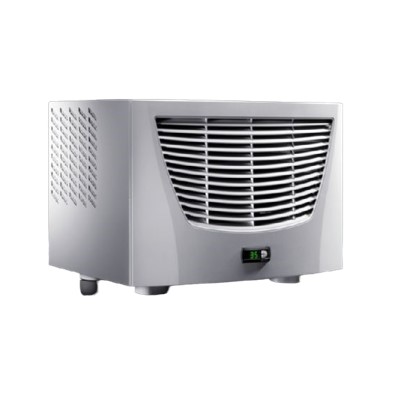

High energy efficiency Blue e top-mounted air conditioner with cooling power from 500W to 4000 W.
Standard built-in comfort controller and electric condensate evaporator.
Product description: energy-efficient Blue e top-mounted air conditioners are equipped with energy-saving and comfortable controllers and electronic condensate evaporators.
Your benefit: can be connected to the IoT interface through the Blue e IoT adapter for cooling equipment with an e-Comfort controller with a cooling power of no less than 500W.
Material: stainless steel 1.4301 (AISI 1.4301).
Color: RAL 9007.
Scope of supply:
Condenser with hydrophobic RiNano coating.
Integrated electric condensate evaporator.
Connected wire (pluggable terminal block).
Drilling formwork.
Install the fixture.
Total cooling power, meeting DIN EN 14511 requirements:
Cooling power L35 L35 Compact 50 Hz: 1.5 kW.
Cooling power L35 L35 Compact 60 Hz: 1.65 kW.
Cooling power L35 L50 Compact 50 Hz: 1.15 kW.
Cooling power L35 L50 shock 60 Hz: 1.3 kW.
Rated operating voltage:
400V, 2mm, 50 Hz/60 Hz.
400 V AC.
Description: top-mounted air conditioner 3273.500 can also be installed in office space because of its low noise level.
Maximum rated current:
At 50 Hz: 2.5A.
At 60 Hz: 2.9A.
Starting current (maximum):
At 50 Hz: 8.7A.
At 60 Hz: 7.6A.
Air flow (free air supply):
External circuit: 1760 m ³/ h.
Internal circuit: 470 m ³/ h.
The energy efficiency ratio (EER) is 50 Hz 60 Hz L35 L35:
Cooling capacity L35 L35 (EER) 50 Hz: 2.24.
Cooling capacity L35 L35 (EER) 60 Hz: 2.13.
Type: top mounting type.
Dimensions:
Width: 597mm.
Height: 417 mm.
Depth: 475 mm.
Protection grade IP, conforming to EN 60529 standard:
External circulation protection level IP 34.
Internal circulation protection level IP 54.
Refrigerant / refrigerant medium:
Refrigerant: R134a.
Quantity: 0.7 kg.
Global warming potential (GWP): 1430.
CO equivalent (CO equivalent): 1 t.
Connection mode: plug-in terminal board.
Switch on duration: 100%.
Temperature regulator: e comfortable controller (factory setting + 35 °C).
Operating temperature range: 10 °C.. 55 °C.
Storage temperature range:-40 °C.. 70 °C.
Adjustment range: 20 °C.. 55 °C.
Rated power Pel:
Rated power L35 L35 Compact 50 Hz: 0.67 kW.
Rated power L35 L35 Compact 60 Hz: 0.76 kW.
Rated power L35 L50 amp 50 Hz: 0.84 kW.
Rated power L35 L50 amp 60 Hz: 0.98 kW.
Allowable working pressure (p maximum): 28 bar.
Description of order number: please inquire about the time of supply.
Front fuse: transformer protection switch: 6.3. 10 A.
Packing unit: 1 piece.
Weight / packing: 47 kg.
Tax rate number: 84158200.
Custom Tariff Number China (deviation to global nr): Differing customs tariff number for China: 84180000.
EAN:4028177380141.
ETIM 7.0:EC000855.
ECLASS 8.0:27180704.
Product description: SK Blue e cooling equipment, top-mounted, 1.5 kW,400 VMagne2 pound 50 Hz, stainless steel, W x H x D: 597 x 417 x 475 mm
