The total cooling power of TopTherm Blue e is 0.50-4.00kW
Product Code :SK 3359.540

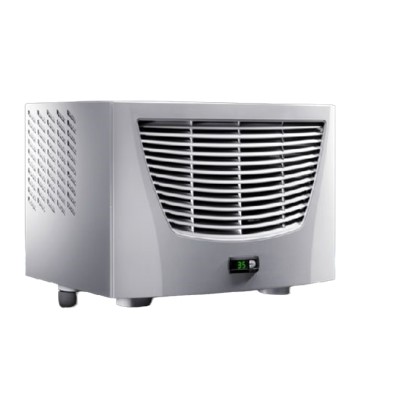

Energy-efficient Blue e top-mounted air conditioner with cooling power from 500 W to 4000 W. Standard built-in comfort controller and electric condensate evaporator.
Description: High energy efficiency Blue e top mounted air conditioning standard with energy efficient comfort controller and electronic condensate evaporator.
Your benefits: Connected to the IoT interface via the Blue e IoT adapter for cooling devices with up to 500 W power and E-Comfort controller
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
Integrated electric condensate evaporator
wired
Borehole template
Mounting fastener
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 0.77kW
Cooling power L35 L35/60 Hz: 0.79kW
Cooling power L35 L50/50 Hz: 0.52kW
Cooling power L35 L50/60 Hz: 0.47kW
Rated operating voltage:
400 V, 2~, 50 Hz/60 Hz
400 V AC
Description: Top-mounted air conditioner 3273.500 can also be installed in office space due to very low noise level.
Maximum rated current:
At 50 Hz: 1.6A
At 60 Hz: 2.1A
Starting current (Max.) :
At 50 Hz: 5.4A
At 60 Hz: 5.2A
Air flow (free air supply) :
External loop: 800 m³/h
Internal loop: 585 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 2.28
Cooling capacity L35 L35 (EER) 60 Hz: 1.82
Type: Top mount
Size:
Width: 597 mm
Height: 417 mm
Depth: 380 mm
Protection class IP, according to EN 60 529:
External loop protection level IP 34
Internal circulation protection level IP 54
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.4kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 0.57 t
Connection mode: plug-in terminal board
Switch on duration: 100%
Temperature regulator: e Comfortable controller (factory setting +35 °C)
Operating temperature range: 10 °C... 55 °C
Storage temperature range: -40 °C... 70 °C
Adjustment range: 20 °C... 55 °C
Rated power Pel:
Rated power L35 L35/50 Hz: 0.33kW
Rated power L35 L35/60 Hz: 0.43kW
Rated power L35 L50/50 Hz: 0.49kW
Rated power L35 L50/60 Hz: 0.42kW
Allowable working pressure (p Max) : 28 bar
Front fuse: Transformer protection switch: 6.3... 10 A
Packing unit: 1 piece
Weight/Package: 37 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr)Differing customs tariff number for China: 84180000
EAN: 4028177433717
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK r/ Installation cooling cabinet 750w outlet
