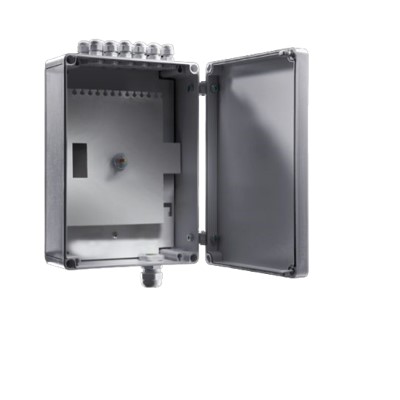

The compact fiber optic distributor is equipped with mounting plate and junction box mounting kit
Product Code :DK 7451.000
Fiberglass reinforced polycarbonate compact fiber optic distributor with mounting plate and PG spiral joint. Protection level: IP 66.
Your benefits:
The mounting plate has a variable mounting base for up to two junction boxes (92-120 mm wide) and an integrated anti-twister
Partition with comb slats for cable support, junction box shielding and installation of 2 connector panels
The cable is laid through prefabricated openings with the help of cable threaded joints (2 x 22.5 mm and 12 x 12.5 mm)
Materials:
Case with lid: glass fiber reinforced polycarbonate
Lid screw: polyamide
Insulation plug: polyamide
Foamed polyurethane plastic sealing ring
Color: RAL 7035
Scope of Supply:
Case with knock down holes for cable fastening bolts
Hinged case covers with seals
2 lid screws, can lead seal
Insulation plugs are used for wall fixation
Mounting plate
Partition plate:
12 Cable threaded casing fitting M12 x 1.5
1 Cable threaded casing fitting M20 x 1.5
Size:
Width: 180 mm
Height: 254 mm
Depth: 90 mm
Maximum number of optical fibers when the panel is used: 24
Basic material: polycarbonate
Protection class IP, according to EN 60 529: IP 66
Packing unit: 1 piece
Weight/Packing: 1.72kg
Tax number: 73269098
EAN: 4028177130562
ETIM 7.0: EC002500
ECLASS 8.0:27180208
Product description: DK
