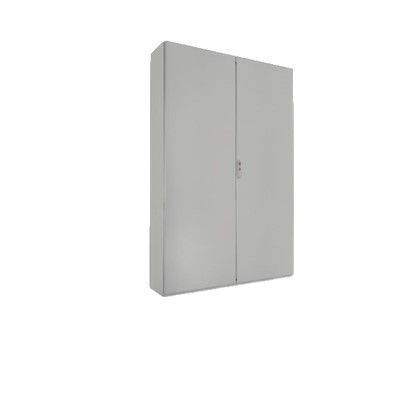

Standalone cabinet system VX SE
Product Code :SE 5840.600
The freestanding cabinet is made of steel plates, has a solid frame, two built-in mounting planes, and a bolted rear panel and door panel. The top plate and sides are composed of an integrated molding frame. Fully compatible with the VX25 parallel cabinet system. It is more efficient because there is no need to install side panels, and large cabinet widths can replace small parallel combinations.
Materials:
Box: 1.5mm steel plate
Door: Steel plate, 2.0mm
Rear wall: Steel plate, 1.5 mm
Bottom plate: Steel plate, 1.5 mm
Mounting plate: Steel plate, 3.0mm
Surface:
Box, door and back wall: dip primer, powder coating, weaves
Mounting plate and base plate: galvanized
Color: RAL 7035
Scope of Supply:
Enclosure is closed on the top and sides
The door
The door hinge of the single door cabinet is on the right side and can be changed to the left side
Mounting plate
Bottom plate
The rear plate can be unscrewed and removed
Lock: 3 mm double teeth
2 perforated rails 18 x 39 mm
Rear wall, single piece
Size:
Width: 1,000 mm
Height: 1,800 mm
Depth: 400 mm
Mounting plate dimensions (W x H) : 899 mm x 1,696 mm
Protection class IP, according to EN 60 529: IP 55
Protection category NEMA: NEMA 12
Models are certified according to UL 50E certification standards: Types 1, 2, 3, 3R, 12
IK code: IK10
Number of doors: 2
Locks: Number of locks: 2
Basic material: steel plate
Packing unit: 1 piece
Weight/Packing: 144 kg
EAN: 4028177959149
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: VX SE freestanding cabinet system, W x H x D: 1000x1800x400 mm, steel plate, with mounting plate, front double door
