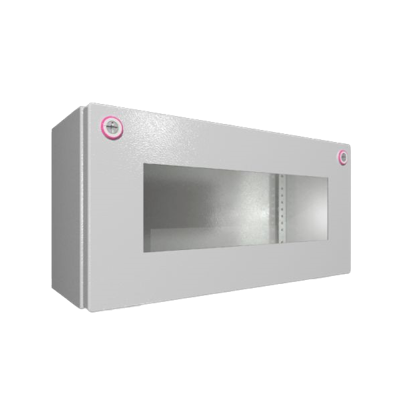

KX Small box KX bus box, steel plate, with mini CAM lock
Product Code :KX 1611.000
Wall mounted housing made of steel plate with cover plate and inspection window. Protection level IP 65 / NEMA 12. Bus modules and sensors for almost all products.
Materials:
Box: Steel plate
Case cover: steel plate, surrounded by foamed polyurethane plastic (PU) sealing ring
Transparent film for window inspection: polycarbonate, 4 mm
Surface: Box and lid: dip primer, powder coating, weaving
Color: RAL 7035
Scope of Supply:
Case with hinged case cover
Case cover with inspection window
Mini CAM lock
Protection category NEMA: NEMA 1, 12
Protection class IP, according to EN 60 529: IP 65
Models are certified according to UL 50E certification standards: Type 1, 12
IK code: IK08
Size:
Width: 400 mm
Height: 300 mm
Depth: 155 mm
Cover material thickness: 1.25mm
Box material thickness: 1.25mm
Basic material: steel plate
Packing unit: 1 piece
Weight/Package: 5 kg
Tax code: 94032080
EAN: 4028177816688
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: KX bus box, size: 400x300x155mm, steel plate, with closed bottom plate, hinged top cover and observation window
