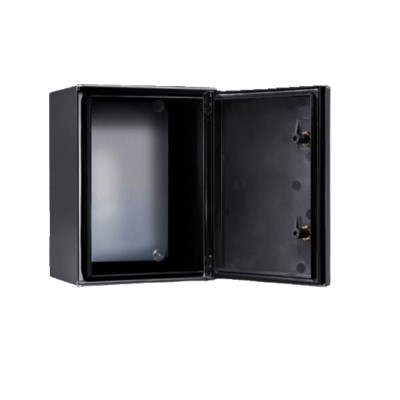

Explosion-proof housing plastic, empty housing with hinged doors
Product Code :KEL 9201.600
Plastic Ex housing with hinged doors
Scope of use:
Zones 1 and 2 or 21 and 22 in accordance with 2014/34/EU
Applicable ambient temperature range: -30 °C... +80 °C
The marked temperature can be limited through the built-in device
Protection class according to EN 60079: Good protection of its internal equipment (Ex tb) by improving the safety of the box (Ex e)
Materials:
Housing: glass fiber reinforced unsaturated polymer, surface resistance: < 10⁹ Ω
Door: glass fiber reinforced unsaturated polyester, surface resistance: < 10⁹ Ω with foamed silicone seal around the perimeter
Mounting plate: steel plate, galvanized
Color: RAL 9011
Scope of Supply:
box
The door
Mounting plate
Size:
Width: 200 mm
Height: 300 mm
Depth: 150 mm
Mounting plate dimensions (W x H) : 145 mm x 250 mm
Certificate IEC EX PTB 10.0011U: Yes
Certificate PTB 03 ATEX 1011U: Yes
Basic material: Plastic
Lock:
Lock specification: flange
Number of locks: 1
Lock core: 3 mm double teeth
Protection level IP, according to IEC 60 529 standard: IP 66
Packing unit: 1 piece
Weight/Packing: 3.7kg
Tax code: 94037000
EAN: 4028177138216
ETIM 7.0: EC002503
ECLASS 8.0:27180502
Product Description: EX Cabinet 200 X 300 X 150
