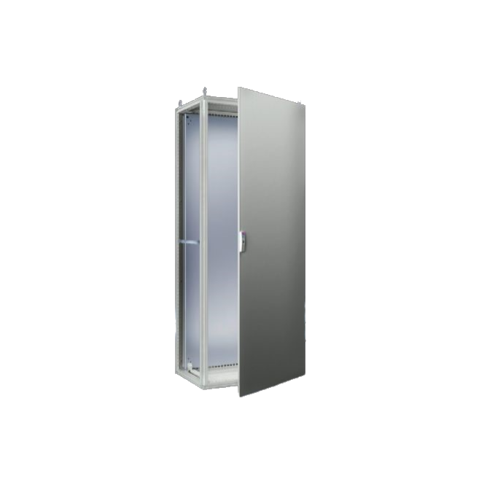

Parallel cabinet system TS 8 IP 66/NEMA 4
Product Code :TS 8806.580
Parallel cabinet system TS 8, protection class IP 66, NEMA 4, painted steel.
Materials:
Box frame: steel plate, 1.5 mm
Top: steel plate, 1.5 mm
Door: Steel plate, 2.0mm
Rear wall: Steel plate, 1.5 mm
Base: Steel plate, 1.5 mm
Mounting plate: Steel plate, 3.0mm
Surface:
Box frame, door, top cover, bottom plate and back wall: dip primer, powder coating, weaving
Mounting plate: galvanized
Color: RAL 7035
Scope of Supply:
Housing frame
The door
The door hinges on the right and can be changed to the left
Roof plate
Base, enclosed
Posterior wall
Mounting plate
4 transport rings
Lock: 3 mm double teeth
2 TS punching rails 18 x 38 mm
Install two depth support bars in the depth direction of the cabinet
Accessory kit for side panels for extension to protection level IP 66
Size:
Width: 800 mm
Height: 2,000 mm
Depth: 600 mm
Mounting plate dimensions (W x H) : 699 mm x 1,896 mm
Protection class IP, according to EN 60 529: IP 66
Protection category NEMA
NEMA 1, 12
NEMA 4
Models are certified in accordance with UL 50E certification standards: UL 1, 4, 12
IK code: IK09
Basic material: steel plate
Packing unit: 1 piece
Weight/Package: 124 kg
EAN: 4028177597686
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: TS Cabinet combining system IP 66 / NEMA 4, W H D: 800x2000x600 mm, steel plate, with mounting plate, front single door
