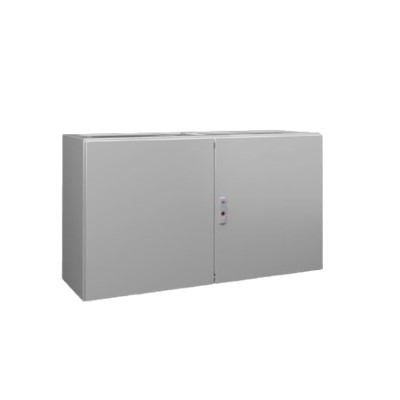

The lower part of the piano console
Product Code :TP 6707.600
The TP Piano console base, with four widths and two different depths, provides the foundation for every piano console solution. The AX lock cover ensures uniformity of appearance, and the two-piece base plate is included in the supply for easy cabling.
Materials:
Box: 1.5mm steel plate
Door and keyboard console cover: steel 2.0mm with foamed polyurethane plastic seals around
Mounting plate: steel plate
Surface:
Box, lid and door: dip primer, powder coating, weaves
Mounting plate: galvanized
Color: RAL 7035
Scope of Supply:
Box open above
Door or double door with locking lever (front for depth of 400 mm, front and back for depth of 500 mm)
Mounting plate
Bottom plate
Mounting plate dimensions (W x H) : 1,499 mm x 571 mm
Number of doors: 2
Size:
Width: 1600 mm
Height: 675 mm
Depth: 500 mm
Protection level IP, according to IEC 60 529 standard: IP 55
Protection category NEMA: NEMA 12
Description: Mounting plate, 25 mm as a unit of height adjustable
Packing unit: 1 piece
Weight/Packing: 90 kg
Tax code: 94032080
EAN: 4028177959910
ETIM 7.0: EC000784
ECLASS 8.0:27180504
Description: TP TopConsole system, pedestal, WHD: 1600x675x500 mm, Sheet steel
