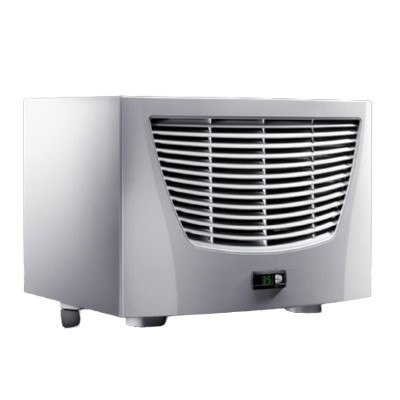

Top-mounted cooling units are used to cool IT equipment
Product Code :SK 3301.800
For active independent cabinet cooling with power losses up to 3 kW. Server intake air temperature control depending on rating.
Your benefits: Even air distribution in front of the 19" mounting flat
Application scope: The cooling device of the IT equipment in the IT cabinet is separately installed in the second-level equipment room
Mode of action:
The device supports typical "front to back" IT air diversion and can be adjusted to the set server intake temperature
The IT hot exhaust gas is pumped from the rear area of the IT cabinet into the unit, where it cools and re-blows the cold air to the 19" flat front
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
Integrated electric condensate evaporator
The cable is connected
Borehole template
Air deflector
Includes mounting fasteners
Total cooling power, according to DIN EN 14511: Total cooling power L35 L45:3,200 W
Air flow (free air supply) :
External loop: 2,000 m³/h
Internal loop: 1,450 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35: Cooling capacity L35 L35 (EER) 50 Hz: 1.6
Rated operating voltage: 230 V, 1~, 50 Hz
Maximum rated current: 10.4A at 50 Hz
Connection mode: plug-in terminal board
Size:
Width: 597 mm
Height: 417 mm
Depth: 895 mm
Starting current (Max.) : At 50 Hz: 36 A
Switch on duration: 100%
Temperature regulator: Controls the air intake temperature of the server
Monitoring system: Monitor intake air temperature
Allowable working pressure (p Max) : 25 bar
Front fuse: Automatic fuse/fuse: 16 A
Adjustment range: 20 °C... 25 °C
Protection class IP, according to EN 60 529:
External loop protection level IP 20
Internal circulation protection level IP 20
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 1.2kg
Packing unit: 1 piece
Weight/Packing: 97 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177558298
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK RTT+ top air conditioning, 3kW, 230V,50Hz
