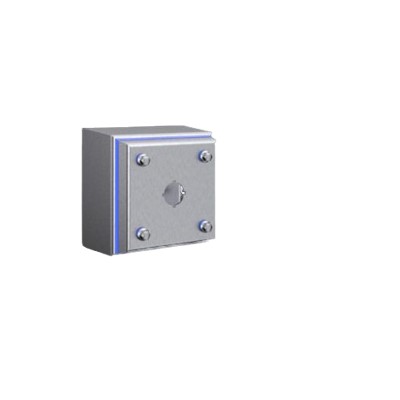

Sanitary design keying box HD
Product Code :HD 1681.600
Housing for the food and beverage industry with a slot for keys. Seamless silicone seal between box and cover plate. Meet hygienic requirements for quick release of hexagonal fasteners.
Type: Case tilt forward 3°
Materials:
Case and lid: stainless steel 1.4301 (AISI 304), 1.5 mm
Screw plug stainless steel
Seal: Silicone, in accordance with FDA specification 21 CFR 177.2600
Surface:
Box and lid: brushed, particle size 400, roughness < 0.8µm
Seals: dyed blue (RAL 5010)
Scope of Supply:
enclosure
Top cover with keyboard
Seals and locking devices (included)
Size:
Width (front) : 100 mm
Width (rear) : 122 mm
Front height: 100 mm
Height rear: 122 mm
Depth: 90 mm
Spacing size: 60 mm
Number of control key openings, diameter 22.5mm: 1
IK code: IK08
Lock:
Lock specifications: hexagonal fast locking device in line with sanitary conditions
Number of locks: 4
Protection class IP, according to IEC 60 529 standard:
IP 66
IP 69
Protection category NEMA: NEMA 1, 3, 3X, 4, 4X, 12, 13
Models are certified according to UL 50E certification standards: Types 1, 3, 3X, 4, 4X, 12, 13
Packing unit: 1 piece
Weight/Packing: 0.98 kg
Tax number: 94039910
EAN: 4028177958661
ETIM 7.0: EC002713
ECLASS 8.0:27180101
