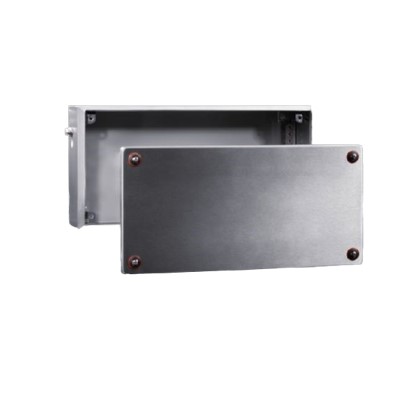

Explosion-proof housing stainless steel, empty housing with screw fixing cover
Product Code :KEL 9301.000
Stainless steel EX housing with screw fastening cover
Scope of use:
Zones 1 and 2 or 21 and 22 in accordance with 2014/34/EU
Applicable ambient temperature range: -30 °C... +80 °C
The marked temperature can be limited through the built-in device
Protection class according to EN 60079: Good protection of its internal equipment (Ex tb) by improving the safety of the box (Ex e)
Materials:
Box: Stainless Steel 1.4301 (AISI 304)
Case cover: stainless steel 1.4301 (AISI 304) with foamed silicon resin seal on all sides
Surface: Box: wire drawing, particle size 400, roughness < 0.8μm
Scope of Supply:
box
Case cover
Size:
Width: 150 mm
Height: 150 mm
Depth: 80 mm
Certificate IEC EX PTB 09.0033U: Yes
Certificate PTB 03 ATEX 1013U: Yes
Basic material: stainless steel
Protection level IP, according to IEC 60 529 standard: IP 66
Packing unit: 1 piece
Weight/Packing: 1.3kg
Tax code: 94032080
EAN: 4028177138544
ETIM 7.0: EC002503
ECLASS 8.0:27180502
Product Description: KEL9301 EX box 150X150X80
