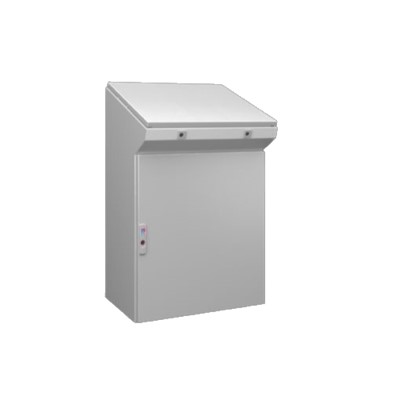

Vertical console TP
Product Code :TP 6746.600
Vertical console for operation and monitoring with large mounting plate with high protection rating IP 55 available in four different widths. The AX lock cover ensures uniformity of appearance, and the two-piece base plate is included in the supply for easy cabling.
Materials:
Box: 1.5mm steel plate
Door and keyboard console cover: steel 2.0mm with foamed polyurethane plastic seals around
Mounting plate: Steel plate, 3.0mm
Surface:
Box, lid and door: dip primer, powder coating, weaves
Mounting plate: galvanized
Color: RAL 7035
Scope of Supply:
The rear and sides of the box are closed
Door or double door in front with locking lever
Mounting plate
There are hinges on the back of the lid, and 2 positioning supports can be automatically locked and unlocked automatically on the left and manually on the right
Bottom plate
Size:
Width: 600 mm
Height: 975 mm
Depth (keyboard console cover) : 500 mm
Depth (bottom structure of piano console) : 400 mm
Mounting plate dimensions (W x H) : 530 mm x 900 mm
Number of doors: 1
IK code: IK08
Protection level IP, according to IEC 60 529 standard: IP 55
Protection category NEMA: NEMA 12
Packing unit: 1 piece
Weight/Packing: 51.6kg
Tax code: 94032080
EAN: 4028177959927
ETIM 7.0: EC000784
ECLASS 8.0:27180504
Product Description: TP upper part, W x H x D 1/ D 2:600x975x400/500 mm, steel plate
