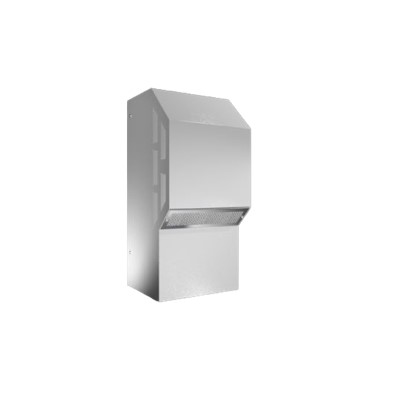

Wall mounted cooling unit TopTherm Blue e, UL Type 3R/4 0.5-2.5kW
Product Code :SK 3303.508
500 W to 2,500 W Energy efficient Blue e wall-mounted air conditioning with built-in comfort e controller and electronic condensate evaporator (1000 W +), protection class UL Type 3R/ 4,12.
Description: High efficiency Blue e wall-mounted cooling equipment comes standard with an energy efficient comfort controller and an electronic condensate evaporator. Protection class UL Type 3R/4, 12.
Your benefits:
Blue e technology for outdoor Settings
The Blue e IoT adapter can be connected to the IoT interface for cooling devices with at least 500 W of power and an E-Comfort controller
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
wired
Borehole template
Mounting fastener
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 0.46kW
Cooling power L35 L35/60 Hz: 0.55kW
Cooling power L35 L50/50 Hz: 0.27kW
Cooling power L35 L50/60 Hz: 0.32kW
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Maximum rated current:
At 50 Hz: 2.6A
At 60 Hz: 2.6 A
Starting current (Max.) :
At 50 Hz: 5.1A
At 60 Hz: 6.4A
Air flow (free air supply) :
External loop: 315 m³/h
Internal loop: 265 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 1.31
Cooling capacity L35 L35 (EER) 60 Hz: 1.3
Type: wall mounted
Size:
Width: 285 mm
Height: 620 mm
Depth: 298 mm
Protection class IP, according to EN 60 529:
External loop protection level IP 34
Internal circulation protection level IP 56
Protection category NEMA
UL Type 3R
UL Type 4
UL Type 12
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.17 kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 0.24 t
Temperature regulator :e Comfortable controller (factory setting +35 °C)
Operating temperature range: -20 °C... 50 °C
Operating temperature: The ambient temperature in the compressor cooling mode is at least +10 °C. Start the internal fan only in the temperature range from -20 °C to +10 °C.
Storage temperature range: -40 °C... 70 °C
Adjustment range: 20 °C... 50 °C
Rated power Pel:
Rated power L35 L35/50 Hz: 0.35kW
Rated power L35 L35/60 Hz: 0.42kW
Rated power L35 L50/50 Hz: 0.4kW
Rated power L35 L50/60 Hz: 0.48kW
Allowable working pressure (p Max) : 28 bar
Front fuse: Automatic fuse/fuse: 10 A
Note on order number: There is no integrated condensate evaporator
Packing unit: 1 piece
Weight/Package: 25 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177943674
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK cooling unit Blue e, wall-mounted, UL Type 3R/4,, 0.46kW, 230 V, 1~, 50/60 Hz,, Sheet steel,, WHD: 285 x 620 x 298 mm,
