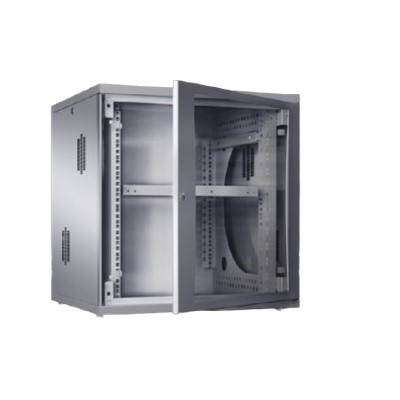

FlatBox
Product Code :DK 7507.100
The container is packed in a Flat cabinet. Multiple options are available, and can be flexibly used as a wall-mounted or vertical box.
Type: with 19 'mounting Angle rails
Product description: Can be flexibly used as a wall-mounted or vertical box.
Your benefits:
Quick installation without the use of tools
System expansion on an open 19" rack
Materials:
Steel plates
Transparent film for window inspection: single safety glass, 3 mm
Surface: Powder coating
Color: RAL 7035
Scope of Supply:
The container is packed in a Flat cabinet
1 wall mounted component
2 basic stands
2 top plate/bottom plate with opening for cable lead-in, via brush strip
2 side panels, lockable
1 transparent door, lockable; Safety lock 3524E; Door hinges are optional
Connectors are used for quick installation without tools
The grounding component is used to ground all container components according to system requirements
19" mounting Angle rail
Size:
Width: 600 mm
Height: 358 mm
Depth: 600 mm
Installation height for components: 6 U
Carrying capacity: up to 300 N
Instructions:
Maximum mounting depth: Depth - 58mm(rear panel)
Maximum surface spacing between two 19 * planes: Depth -104 mm
The maximum opening Angle is 210°
Basic material: steel plate
Packing unit: 1 piece
Weight/Package: 24 kg
Tax code: 94032080
EAN: 4028177551435
ETIM 7.0: EC002500
ECLASS 8.0:27180208
Product Description: DK Smooth box 6HE, WxD 600x600 mm
