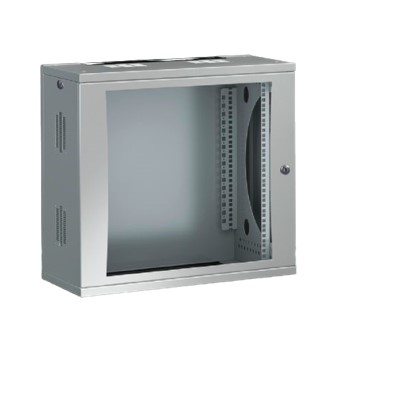

FlatBox
Product Code :DK 7507.030
The container is packed in a Flat cabinet. Multiple options are available, and can be flexibly used as a wall-mounted or vertical box.
Type: with 19" mounting frame
Product description: Can be flexibly used as a wall-mounted or vertical box.
Your benefits:
Quick installation without the use of tools
System expansion on an open 19" rack
Materials:
Steel plates
Transparent film for window inspection: single safety glass, 3 mm
Surface: Powder coating
Color: RAL 7035
Scope of Supply:
The container is packed in a Flat cabinet
1 wall mounted component
2 basic stands
2 top plate/bottom plate with opening for cable lead-in, via brush strip
2 side panels, lockable
1 transparent door, lockable; Safety lock 3524E; Door hinges are optional
Connectors are used for quick installation without tools
The grounding component is used to ground all container components according to system requirements
19" mounting frame
Size:
Width: 600 mm
Height: 758 mm
Depth: 400 mm
Installation height for components: 15 U
Carrying capacity: maximum 750 N
Instructions:
Maximum mounting depth: Depth - 58mm(rear panel)
Maximum surface spacing between two 19 * planes: Depth -104 mm
The maximum opening Angle is 210°
Basic material: steel plate
Packing unit: 1 piece
Weight/Packing: 30 kg
Tax code: 94032080
EAN: 4028177551428
ETIM 7.0: EC002500
ECLASS 8.0:27180208
Product Description: DK Smooth box 15HE, WxD 600x400 mm
