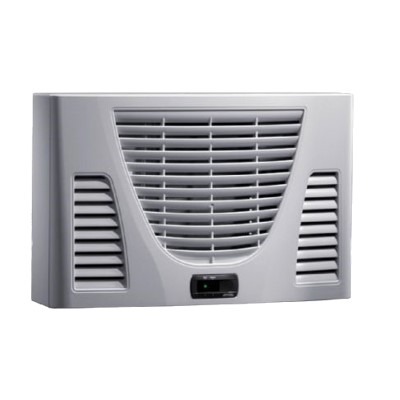

Wall mounted cooling unit TopTherm Blue e 0.3-4 kW
Product Code :SK 3302.310
High energy efficiency Blue e wall-mounted cooling units with a cooling capacity of 300 W to 4000 W, models with an integrated electric condensate evaporator with a cooling capacity of 1000 W or more. There are two special specifications, "thin type" and "horizontal type".
Product Description: High energy efficiency Blue e wall mounted cooling equipment, cooling capacity range 300 W to 4000 W, cooling capacity more than 1000 W model with integrated electronic condensate evaporator.
Your benefits: Connected to the IoT interface via the Blue e IoT adapter for cooling devices with up to 500 W power and E-Comfort controller
Material: Steel plate
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
wired
Borehole template
Mounting fastener
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/60 Hz: 0.32kW
Cooling power L35 L50/60 Hz: 0.19kW
Rated operating voltage: 115 V, 1~, 60 Hz
Maximum rated current: at 60 Hz: 4 A
Starting current (Max.) : At 60 Hz: 12 A
Air flow (free air supply) :
External loop: 300 m³/h
Internal loop: 300 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35: Cooling capacity L35 L35 (EER) 60 Hz: 1
Type: wall mounted
Special structural form: horizontal type
Size:
Width: 525 mm
Height: 340 mm
Depth: 153 mm
Protection class IP, according to EN 60 529:
External loop protection level IP 34
Internal circulation protection level IP 54
Protection category NEMA: UL Type 12
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.1kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 0.13 t
Temperature regulator: Basic controller (factory setting +35 °C)
Operating temperature range: 10 °C... 55 °C
Storage temperature range: -40 °C... 70 °C
Adjustment range: 30 °C... 55 °C
Rated power Pel:
Rated power L35 L35/60 Hz: 0.32kW
Rated power L35 L50/60 Hz: 0.37kW
Allowable working pressure (p Max) : 25 bar
Front fuse: Automatic fuse/fuse: 10 A
Packing unit: 1 piece
Weight/Packing: 13 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177429802
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK w/ Installation m with i cooling cabinet level
