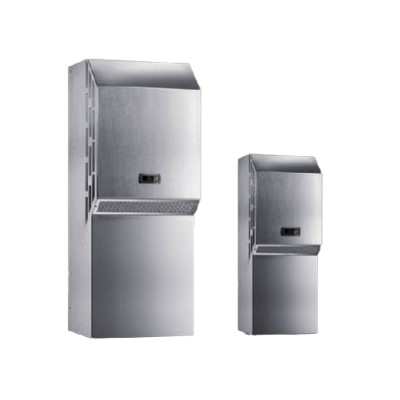

Wall mounted cooling unit TopTherm Blue e, NEMA 4X 0.5-2.5kW
Product Code :SK 3329.544
Efficient Blue e wall-mounted cooling units with power grades from 500 W to 2,500 W, standard built-in comfort controllers and electrical condensate evaporators. Protection level NEMA 4X.
Description: High efficiency Blue e wall-mounted cooling equipment comes standard with an energy efficient comfort controller and an electronic condensate evaporator. Protection level NEMA 4X.
Your benefits: Connected to the IoT interface via the Blue e IoT adapter for cooling devices with up to 500 W power and E-Comfort controller
Material: Stainless Steel 1.4404 (AISI 316L)
Scope of Supply:
Condenser with hydrophobic RiNano coating
wired
Borehole template
Mounting fastener
Integrated electric condensate evaporator
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 2.55kW
Cooling power L35 L35/60 Hz: 2.75kW
Cooling power L35 L50/50 Hz: 1.9kW
Cooling power L35 L50/60 Hz: 1.95kW
Rated operating voltage:
400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Maximum rated current:
At 50 Hz: 3.3A
At 60 Hz: 3.4A
Starting current (Max.) :
At 50 Hz: 6.8A
At 60 Hz: 7.6A
Air flow (free air supply) :
External loop: 1,200 m³/h
Internal loop: 1,200 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 2.11
Cooling capacity L35 L35 (EER) 60 Hz: 1.97
Type: wall mounted
Size:
Width: 405 mm
Height: 1,650 mm
Depth: 388 mm
Protection class IP, according to EN 60 529:
External loop protection level IP 34
Internal circulation protection level IP 55
Protection category NEMA: NEMA 4X
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.9kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 1.29 t
Temperature regulator: e Comfortable controller (factory setting +35 °C)
Operating temperature range: 10 °C... 50 °C
Storage temperature range: -40 °C... 70 °C
Adjustment range: 20 °C... 50 °C
Rated power Pel:
Rated power L35 L35/50 Hz: 1.19kW
Rated power L35 L35/60 Hz: 1.39kW
Rated power L35 L50/50 Hz: 1.44kW
Rated power L35 L50/60 Hz: 1.75kW
Allowable working pressure (p Max) : 28 bar
Front fuse: Motor protection switch: 6.3... 10 A
Packing unit: 1 piece
Weight/Packing: 84 kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177389489
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK RITTAL wall mount [T
