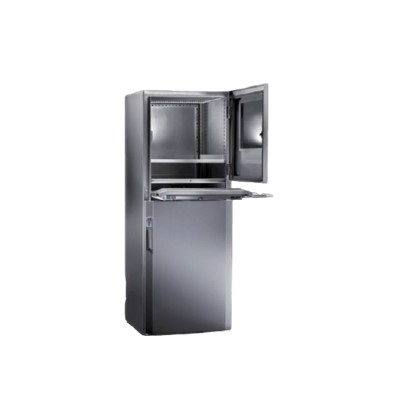

Stainless steel for PC cabinet system.
Article number: PC 4650.150.
VX SE-based PC cabinet system, using stainless steel 1.4301, (AISI 304).
The unique structural concept of steel plate PC.
The practical backdoor design is convenient for operation when performing maintenance operations.
Molded side panels and ceilings, internal transparent door locks and lockable keyboard drawers provide high security.
Materials:
Box: stainless steel 1.4301 (AISI 304C), 1.5mm.
Back door: stainless steel 1.4301 (AISI 304,2.0 mm).
Backplane: stainless steel 1.4301 (AISI 304C), 1.5mm.
Monitor window: monolithic safety glass, 4 mm.
Surface: wire drawing, particle size 400.
Scope of supply:
The upper and side of the box are closed.
The back of the door is equipped with a lock lever.
Above the transparent door, locked on the inside.
Bearing plate.
Keyboard drawer, front stackable, for palm thenar pad and mouse pad bracket.
Lock core, lock number 3524 E.
The back of the door is equipped with a lock lever.
Segmented bottom plate.
Dimensions:
Width: 600 mm.
Height: 1600 mm.
Depth: 630 mm.
Protection grade IP, conforming to IEC 60529 standard: IP 55.
Protection level NEMA:NEMA 12.
Basic material: stainless steel.
Packing unit: 1 piece.
Weight / packing: 115 kg.
EAN:4028177959491.
ETIM 7.0:EC002502.
ECLASS 8.0:27180501.
Product description: PC PC enclosure system, WHD: 600x1600x630 mm, Stainless Steel, 1.4301, with keyboard drawer
