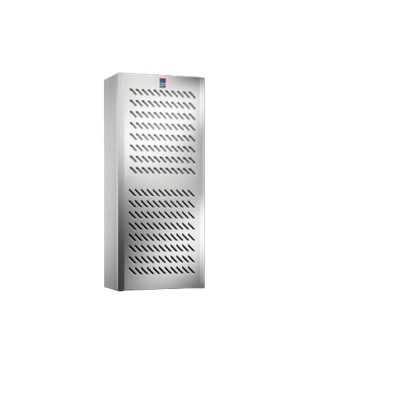

Blue e+ Outdoor wall mounted cooling equipment 1.5-5.0kW
Product Code :SK 3185.330
High energy efficiency Blue e+ outdoor wall mounted cooling unit with cooling capacity ranging from 1500 W to 5000 W. Protection classes up to IP56 / UL 12/3R/4, suitable for temperatures ranging from -30°C to 60°C, provide optimal protection even in harsh environmental conditions. The cooling unit can be installed in three ways (external, semi-embedded and fully embedded), for example in the Toptec project solution.
Description: The high energy efficiency Blue e+ outdoor wall-mounted cooling unit is suitable for global applications due to its multi-voltage compatibility and can be used in applications such as Toptec project solutions.
Your benefits:
The speed control unit and heat pipe technology save an average of 75% of electricity consumption.
Extend the service life of all components of the control box and cooling unit through curing cooling
Intuitive operation via touch screen and intelligent interface
Material: Aluminum magnesium alloy
Surface:
Powder coating
Uv resistant pure polyester
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
Integrated electric condensate evaporator
wired
Mounting frame for general purpose fixing on outdoor boxes for outboard, semi-recessed and fully recessed mounting
Includes mounting fasteners
Options:
To facilitate remote monitoring and networking of the cooling unit and Blue e+ cooling unit, use the IoT communication module with product number 3124.300. Remote monitoring of device data, status, and system messages improves machine availability and process security.
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 1.5kW
Cooling power L35 L35/60 Hz: 1.5kW
Cooling power L35 L50/50 Hz: 1.13kW
Cooling power L35 L50/60 Hz: 1.13kW
Rated operating voltage:
110 V - 240 V, 1~, 50 Hz/60 Hz
380 V - 480 V, 3~, 50 Hz/60 Hz
Description: Once the software is downloaded, the user enters into an agreement with Vito to use the software free of charge under the terms of the license.
Note on order numbers: Tolerances: 110 V-10% (99 V) and 240 V + 10% (264 V) / 380 V-10% (342 V) and 480 V + 6% (509 V)
Rated power: 0.62 kW
Rated power Pel:
Rated power L35 L35/50 Hz: 0.57kW
Rated power L35 L35/60 Hz: 0.57kW
Rated power L35 L50/50 Hz: 0.64kW
Rated power L35 L50/60 Hz: 0.64kW
Temperature regulator: e+ controller (factory setting +35 °C)
Size:
Width: 415 mm
Height: 990 mm
Depth: 280 mm
Device dimensions (including sealing frame and decorative cover) :
Width: 467 mm
Height: 1,042 mm
Depth: 280 mm
Installation type: Universal installation (external, semi-embedded and fully embedded)
Protection level IP, according to IEC 60 529 standard
With mounting frame: internal circulation, protection class IP56
Without mounting frame: internal circulation, protection class IP54
Protection category NEMA
With mounting frame: UL Type 12/3R/4
Without mounting frame: UL Type 12/3R
Air flow (free air supply) :
External loop: 895 m³/h
Internal loop: 700 m³/h
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.75kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 1.07t
Energy efficiency ratio (EER) is 50/60 Hz L35 L35
Cooling Capacity L35 L35 (EER) 50 Hz: 2.61
Cooling Capacity L35 L35 (EER) 60 Hz: 2.61
Applicable to:
Container type: Toptec
Width: ≥ 600 mm
Height: ≥ 1,200mm
To match the model:
9828.550
9868.550
9888.550
Adjustment range: 20 °C... 50 °C
Operating temperature range: -30 °C... 60 °C
Refrigerant circuit (active) operating temperature range: 3 °C... 60 °C
Heat pipe operating temperature range: -30 °C... 45 °C
Storage temperature range: -40 °C... 70 °C
Allowable working pressure (p Max) : 2.4
Noise level: 67 dB(A)
Packing unit: 1 piece
Weight/Packing: 36 kg
Tax code: 84158200
EAN: 4028177958562
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK Blue e+ cooling unit, wall-mounted, outdoor, 1.6kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, aluminium, WHD: 400 x 950 x 310 mm
