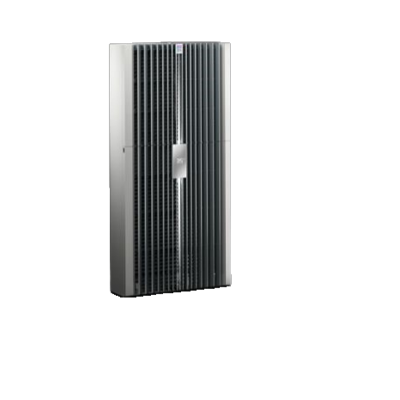

Wall-mounted air conditioner Blue e+ S 0.3kW-1kW
Product Code :SK 3184.840
Blue e+ S cooling equipment uses proven Blue e+ technology. It also reduces CO2 emissions from machinery and equipment. With a new design and multiple intelligent functions.
Type: Integrated electric condensate evaporator
Your benefits:
On average, energy is saved by 75% and CO2 emissions are reduced, contributing to carbon-neutral production
The use of refrigerant R-513A is more environmentally friendly
With multi-voltage capabilities and country-specific certifications, it can be used worldwide
Easy intelligent monitoring with IoT modules
Easy to operate with the Witto Scan and service app
Material: Steel plate
Color:
Housing: RAL 7035
Flat grille: RAL 7012
Scope of Supply:
Includes mounting fasteners
wired
Integrated electric condensate evaporator
Options:
To facilitate remote monitoring and networking of the cooling unit and Blue e+ cooling unit, use the IoT communication module with product number 3124.300. Remote monitoring of device data, status, and system messages improves machine availability and process security.
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 1 kW
Cooling power L35 L35/60 Hz: 1 kW
Cooling power L35 L50/50 Hz: 0.6kW
Cooling power L35 L50/60 Hz: 0.6kW
Rated operating voltage: 380 V-480 V, 2~, 50 Hz/60 Hz
Instructions:
Please follow the assembly instructions.
Once the software is downloaded, the user enters into an agreement with Vito to use the software free of charge under the terms of the license.
Note on order number: Tolerance: 380 V - 10% (342 V) and 480 V + 10% (528 V)
Rated power: 0.59kW
Air flow (free air supply) :
External loop: 680 m³/h
Internal loop: 680 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 2.37
Cooling Capacity L35 L35 (EER) 60 Hz: 2.37
Type: wall mounted
dimension
Width: 400 mm
Height: 950 mm
Depth: 196 mm
Necessary installation port:
Opening width: 383 mm
Opening height: 929 mm
Protection class IP, according to EN 60 529: internal circulation protection class IP 55
Protection category NEMA: UL Type 3R/12
Refrigerant/cooling medium:
Refrigerant: R-513A
Quantity: 0.31 kg
Global Warming Potential (GWP): 631
CO₂ equivalent (CO₂e): 0.2t
Temperature regulator: e+ controller (factory setting +35 °C)
Operating temperature range: -20 °C... 60 °C
Storage temperature range: -40 °C... 70 °C
Refrigerant circuit (active) operating temperature range: 3 °C... 60 °C
Heat pipe operating temperature range: -20 °C... 45 °C
Adjustment range: 20 °C... 50 °C
Rated power Pel:
Rated power L35 L35/50 Hz: 0.42kW
Rated power L35 L35/60 Hz: 0.42kW
Rated power L35 L50/50 Hz: 0.49kW
Rated power L35 L50/60 Hz: 0.49 kW
Allowable working pressure (p Max) : 34 bar
Packing unit: 1 piece
Weight/Packing: 26.6kg
Tax code: 84158200
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 84180000
EAN: 4028177949942
ETIM 7.0: EC000855
ECLASS 8.0:27180704
Product Description: SK Blue e+ S cooling equipment, wall mounted, 1.0kW, 380-480 V, 2~, 50-60 Hz, steel plate, W x H x D: 400 x 950 x 196 mm
