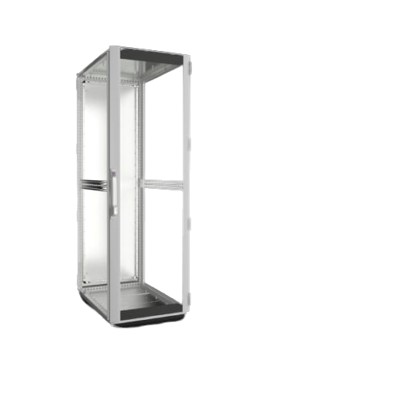

Network/Server cabinet TS IT with glass doors, protection level IP 55, empty cabinet
Product Code :DK 5528.790
TS IT, closed, used for the temperature control system directly related to the cabinet. No 19" internal expansion can be used as an empty tank for individual expansion to different sizes and protection classes up to IP 55.
Materials:
Steel plates
aluminum
Surface:
Box frame: Dip primer
Internal expansion: Dip primer
Doors and roof: Dip primer, powder coating
Colour: Box frames and plates: RAL 7035
Scope of Supply:
Housing frame TS 8 with door and top plate
Transparent aluminum door in front (180°)
Steel plate rear door, 180° hinges
Front/rear lock: Comfortable handle for semi-round lock core and safety lock 3524E
Top plate, single piece, closed
Bottom grooved part, with base plate, multi-section, enclosed
Combination seals and seals for base plate (included)
Connection fittings for potential balancing devices with ground points (included)
12 x 19 "fastener 1 U, contact type (included)
50 hex socket round head screws, conductive (included)
IPPC tray
Size:
Width: 600 mm
Height: 1,800 mm
Depth: 800 mm
Design doors: Closed, IP 55
19" Angle rail: no 19" internal fittings
Protection class IP, according to EN 60 529: Protection class IP 55 only when combined with union seals or bolted side panels
Instructions:
Depending on the installation method and location, the opening Angle of the door will vary in the specific application
When the cabinet height x depth is 2000 x 1200 mm / 2200 x 1000 mm / 2200 x 1200 mm, an appropriate side panel can be provided and is installed on the cabinet upon delivery
Basic material: Aluminum
Packing unit: 1 piece
Weight/Packing: 75 kg
EAN: 4028177703698
ETIM 7.0: EC002499
ECLASS 8.0:27180207
Product Description: TS IT Network/Server Cabinet, WHD: 600x1800x800 mm, 38 U, IP 55, aluminum glass front door, steel rear door, 180° hinge, semi-circular comfort handle, top cover, single piece, closed type, multi-function base, closed type, no side plate, No internal mounting., scope of supply, 50 sets of floating nuts and 50 sets of M5 screws, potential balancing kit., surface treatment :, frame, flat parts RAL 7035.
