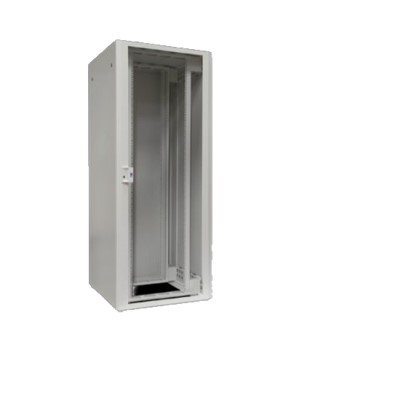

Network cabinet TE 8000
Product Code :TE 7888.530
TE 8000 IT cabinets with glass doors are ready for personalized interior expansion.
Type: with side plate
Your benefits:
No frame
Excellent operability
Easy to install, easy to remove
Door hinges are movable
Materials:
Steel plates
Glass door: single safety glass, 3 mm
Surface:
Mounting frame: Dip primer
Flat parts: powder coating
Color :RAL 7035
Scope of Supply:
Self-supporting 482.6 mm (19") mounting frame, front and rear, with adjustable depth
Front glass door with 130° hinge, design handle and safety lock 3524 E
Steel rear door, including 130° hinges, safety lock 3524 E
Bottom frame with maximum opening for optional formwork
Top plate with preset knock down holes for cable lead-in and optional fan
4 horizontal legs, M10 (included)
4 spacer bolts, 20 mm, for raising cover plate (included)
Side panels, lockable, including safety lock 3524E
Size:
Width: 800 mm
Height: 2,000 mm
Depth: 800 mm
Height unit :42 U
Front/rear mounting free space to 19" plane :130 mm / 130 mm /
Layer spacing (in supply condition) :495 mm
Carrying capacity: 4,000N
Protection class IP, according to EN 60 529 :IP 20
Basic material: steel plate
Packing unit :1 piece
Weight/Package :116 kg
EAN:4028177801462
ETIM 7.0:EC002499
ECLASS 8.0:27180207
Product Description :TE Network enclosure TE 8000, WHD: 800x2000x800mm, 42 U, With glazed door
