The box with steel door, mounting plate and bottom flange plate are painted.
Product Code :AE 1032.500
Materials:
Box: Steel plate
Door: Steel plate with foamed polyurethane plastic seals around
Surface:
Box and door: dip primer, outer warp powder coating, weaving
Mounting plate: galvanized
colour
RAL 7035
Scope of Supply:
Housing with hinged doors, enclosed on all sides
The sealing plate is at the bottom of the box
Mounting plate
Lock: 3 mm double teeth
Protection Level NEMA: NEMA 12
Protection class IP, according to EN 60 529: IP 55
IK code: IK08
Size:
Width: 200 mm
Height: 300 mm
Depth: 120 mm
Door material thickness: 1.5mm
Box material thickness: 1.25mm
Mounting plate material thickness: 2 mm
Mounting plate dimensions (W x H) : 162 mm x 275 mm
Number of doors: 1
Number of locks: 1
Lock:
Lock specification: flange
Number of locks: 1
Lock core: 3 mm double teeth
Cover plate sealing:
Size: 1
Quantity: 1
Basic material: steel plate
Packing unit: 1 piece
Weight/Package :4 kg
Tax code: 94032080
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 85380000
EAN: 4028177251991
ETIM 7.0: EC000261
ECLASS 8.0:27180101

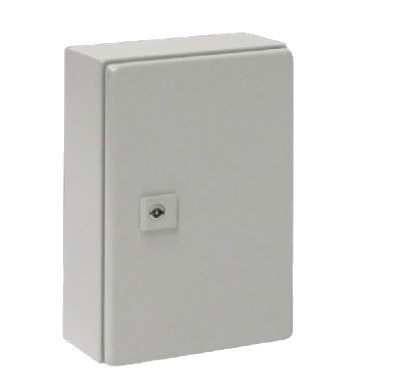

Product Description: AE compact control box W200H300D120 7035
