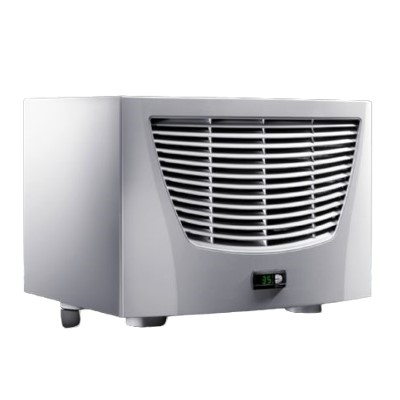

Top mounted air/water heat exchanger
Product Code :SK 3209.540
Top-mounted cooling equipment. Cooling power 1.87kW-4kW. The standard protection level is IP 55. Especially suitable for use in harsh environments. Flexible water connections are available.
Type: Copper/brass water guide parts (Cu/CuZn)
Product description: For use in harsh environments and ambient conditions with temperatures up to +70 °C. The air/water heat exchanger can be mounted on the top of the cabinet, and flexible water pipe connections are available.
Color: RAL 7035
Scope of Supply:
wired
Borehole template
gasket
Mounting fastener
Total cooling power: L 35 W 10: 2.5 kW at 400 l/h
Rated operating voltage: 400 V, 2~, 50 Hz/60 Hz
Rated power Pel:
At 50 Hz: 98 W
At 60 Hz: 115 W
Allowable working pressure (p Max) : 1 ‐ 10 bar
Connection mode: plug-in terminal board
Switch on duration: 100%
Cooling medium: Water (see our website for specifications)
Inlet temperature: 1 °C... 30 °C
Water connection port:
½" hose connection
G ⅜" AG
Temperature regulator: e Comfortable controller (factory setting +35 °C)
Operating temperature range: 1 °C... 70 °C
Size:
Width: 597 mm
Height: 417 mm
Depth: 475 mm
Instructions on order number: For delivery time, please contact us
Protection level: Protection Level IP 65 Please contact
Front fuse: Automatic fuse/fuse: 4 A
Adjustment range: 20 °C... 55 °C
Protection class IP, according to EN 60 529: IP 55
Packing unit: 1 piece
Weight/Packing: 27.5kg
Tax number: 84195080
EAN: 4028177429864
ETIM 7.0: EC002515
ECLASS 8.0:27180712
Product Description: SK Air/Water Heat exchanger, top mount, 2.5kW, 400 V, 2~, 50/60 Hz, comfort controller, water guide parts: copper/brass, W x H x D: 597 x 417 x 475 mm
