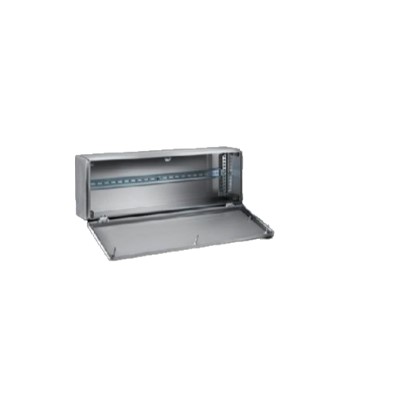

Bus housing BG stainless steel
Product Code :BG 1559.010
Bus housing, stainless steel 1.4301 (AISI 304), containing 180° hinges. Protection level: IP 66.
Materials:
Box: Stainless Steel 1.4301 (AISI 304)
Case cover: stainless steel 1.4301 (AISI 304), surrounded by foamed polyurethane plastic (PU) sealing ring
180° Hinge: zinc die casting
Surface:
Box and lid: brushed, size 240
180° Hinge: chrome plated
Scope of Supply:
Case with cover
180° Hinges (2)
Supporting rail TS 35/7.5
Quick change thread connection with plastic jack
Protection category NEMA: NEMA 4X
Protection class IP, according to EN 60 529: IP 66
Size:
Width: 600 mm
Height: 200 mm
Depth: 123 mm
Box material thickness: 1.5mm
Door material thickness: 1.25mm
Design support rails: Adjustable on profile slats
Door stop position: below
Number of supporting rails: 1
Lock:
Lock specification: Quick change thread interface with plastic jack
Number of locks: 3
Basic material: stainless steel
Packing unit: 1 piece
Weight/Packing: 6 kg
Tax code: 94032080
EAN: 4028177009950
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: BG bus - Chassis 1.4301
