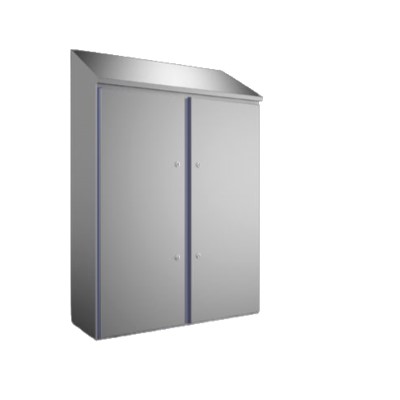

Sanitary design Sanitary compact control cabinet, double door
Product Code :HD 1319.600
Box solutions that meet the requirements of the food and beverage industry. Top tilt forward 30°. The seal is blue to distinguish it from the food
Type: Head tilt forward 30°
Materials:
Box and door: Stainless steel 1.4301 (AISI 304)
Mounting plate: steel plate
Sanitary lock core: Stainless steel 1.4404 (AISI 316L)
Seal: Silicone, in accordance with FDA specification 21 CFR 177.2600
Surface:
Box and door: brushed, particle size 400, roughness < 0.8μm
Mounting plate: galvanized
Seals: dyed blue (RAL 5010)
Scope of Supply:
enclosure
Doors with insert sealing strips
Mounting plate
Size:
Width: 1,010 mm
Front height: 1,250 mm
Height rear: 1,480 mm
Depth: 400 mm
Mounting plate dimensions (W x H) : 945 mm x 1,175 mm
Opening Angle: 125°
IK code: IK08
Protection level IP, according to IEC 60 529 standard
IP 66
IP X9
Protection category NEMA: NEMA 1, 3, 3X, 4, 4X, 12, 13
Models are certified according to UL 50E certification standards: Types 1, 3, 3X, 4, 4X, 12, 13
Packing unit: 1 piece
Weight/Packing: 92.5kg
Tax code :94032080
EAN: 4028177918528
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: HD compact control cabinet, W x H x D: 1010x1250(H1)x1480(H2)x400 mm, stainless steel, 1.4301 with mounting plate, hinged door and silicone seal
