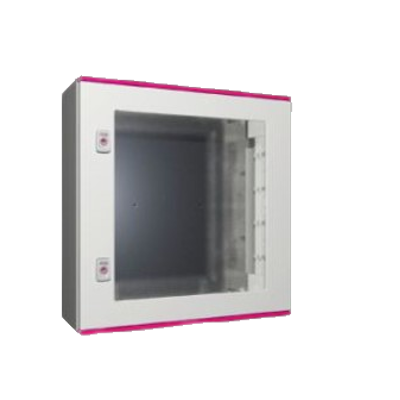

Plastic control cabinet AX transparent with inspection window
Product Code :AX 1467.000
AX plastic boxes with inspection Windows are ideal for outdoor applications. A large number of mounting holes in the cabinet with a module of 25mm enable personalized internal expansion, such as installing punch rails and support rails.
Type: Transparent film with inspection window
Product modification: As of February 2022, this product will no longer have mounting lugs for internal expansion in the baseplate area. This ensures that there is sufficient space for cable entry or opening. The old products will be gradually replaced with new ones.
Scope of use:
Applicable ambient temperature range: -30 °C... +75 °C
The marked temperature can be limited through the built-in device
Materials:
Housing and doors: glass fiber reinforced unsaturated polyester GFK
Door: Surrounded by foam polyurethane plastic (PU) seal ring
Mounting plate: steel plate
Detection window: polycarbonate
Fire resistance conforms to UL 94-V0
Halogen-free
Surface:
Box and door: untreated, plastic stained
Mounting plate: galvanized
Colour: similar to RAL 7035
Scope of Supply:
The cabinet has hinged doors with inspection Windows, enclosed on all sides, and 3 mm double-toothed lock core
The door hinges on the right and can be changed to the left
Mounting plate
Double seal on top and bottom edges of door (as rain strip)
Protection Class NEMA: NEMA 1, 3R, 3RX, 4, 4X, 12
Protection class IP, according to EN 60 529: IP 56
Models are certified in accordance with UL 50E certification standards: Type 1, 3R, 3RX, 4, 4X, 12
Protection Class: II (1000 V AC)
IK code: IK09
Size:
Width: 600 mm
Height: 600 mm
Depth: 200 mm
Mounting plate material thickness: 3 mm
Mounting plate dimensions (W x H) : 505 mm x 525 mm
Opening Angle: 130°
Number of locks: 2
With viewing window: Yes
Instructions:
Internal expansion bolts are required to secure components in a box
With universal mounting angles, components can be fixed in increments of 25 mm, such as system assembly racks
Basic material: Plastic
Standard: Outdoor grade F1 according to UL 746C
Packing unit: 1 piece
Weight/Packing: 17.1kg
Tax code: 94037000
EAN: 4028177006881
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: AX plastic control cabinet, width x height x depth: 600x600x200mm, with inspection window
