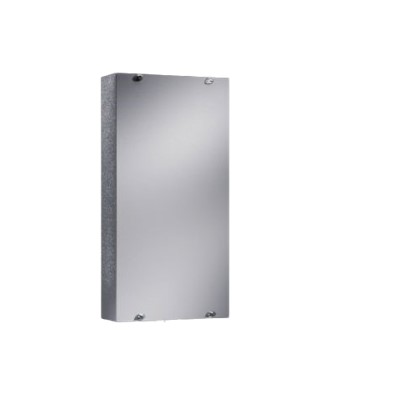

Wall mounted air/water heat exchanger
Product Code :SK 3214.100
Power levels from 375 to 5000 W. For harsh environments. User-friendly installation methods and flexible water pipe connection methods are available. Two mounting modes are available: external and fully embedded.
Type: Copper/brass water guide parts (Cu/CuZn)
Product Description:
For use in harsh environments and in ambient conditions with temperatures up to +70 °C. User-friendly installation methods and flexible water pipe connection methods are available. Two mounting modes are available: external and fully embedded.
Color: RAL 7035
Scope of Supply:
The cable is connected
Borehole template
Sealing and fixing material
Total cooling power:
At 200 l/h L 35 W 10: 0.6kW
At 400 l/h L 35 W 10: 0.7kW
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Rated power Pel:
At 50 Hz: 36 W
At 60 Hz: 37 W
Maximum rated current:
At 50 Hz: 0.17A
At 60 Hz: 0.18A
Allowable working pressure (p Max) : 1 ‐ 10 bar
Switch on duration: 100%
Cooling medium: Water (see our website for specifications)
Inlet temperature: 1 °C... 30 °C
Water connection: ½" hose connection
Temperature regulator: temperature control solenoid valve
Temperature monitoring: Built-in regulator with temperature setting, switching power 16 A, setting range +20 °C... +60 °C (Factory setting +35 °C)
Operating temperature range: 1 °C... 70 °C
Description: An integrated check valve is available in the model with e comfort controller
Size:
Width: 200 mm
Height: 500 mm
Depth: 100 mm
Front fuse: Automatic fuse/fuse: 2 A
Adjustment range: 20 °C... 55 °C
Protection class IP, according to EN 60 529: IP 55
Protection category NEMA: UL Type 1
Packing unit: 1 piece
Weight/Packing: 7 kg
Tax number: 84195080
EAN: 4028177232853
ETIM 7.0: EC002515
ECLASS 8.0:27180712
Product Description: SK Air/Water heat exchanger
