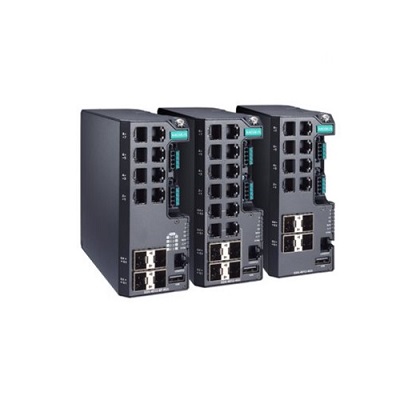

The EDS-4012-4GC-HV, EDS-4012 series is a series of 12-port 100 Gigabit network management Ethernet switches with the option of four 1 Gbps fiber uplink ports. This series also comes with four 10/100BaseT (X) 802.3af (PoE), 802.3at (PoE+) and 802.3bt port option models for connecting PoE devices with high bandwidth requirements
Product characteristics
Developed according to IEC 62443-4-1 and compliant with IEC 62443-4-2 industrial cyber security standards
Supports IEEE 802.3bt PoE with up to 90 W output per port
Supports Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches) and RSTP/STP network redundancy
Multiple power input options for flexible deployment
Compact and flexible housing design for tight Spaces
MXstudio makes it easy to visualize industrial network management
Product parameter
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
EDS-4012-4GS-LV/-HV/-T Model: 8
EDS-4012-4GC-LV/-HV/-T Model: 8
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
PoE port (10/100BaseT (X), RJ45 connector)
EDS-4012-8P-4GS-LVA/-LVB/-T Model: 8
100/1000BaseSFP port
EDS-4012-4GS-LV/-HV/-T Model: 4
EDS-4012-8P-4GS-LVA/-VB/-T Model: 4
Combo port (10/100/1000BaseT (X) or 100/1000BaseSFP)
EDS-4012-4GC-LV/-HV/-T Model: 4
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad, used for LACP port aggregation
IEEE 802.1Q, used for VLAN tags
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1p, for service levels
IEEE 802.1X, used for authorization authentication
Ethernet software features
filtration
GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
manage
IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, and Port Mirror (port mirroring), Linkup Delay (link recovery delay), SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB (Private MIB)
MIB
P-BRIDGE Indicates MIB and Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAEMIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, and RMON MIB Groups 1, 2, 3, 9
Redundant protocol
STP, RSTP, Turbo Ring v2, Turbo Chain, ring coupling, double homing, link aggregation
secure
Broadcast storm protection, rate limiting, trusted access control, static port lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, login and password policies
Time service
SNTP, NTP Server/Client, and NTP authentication
agreement
IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Exchange characteristic
Size of the MAC address table
16 K
Jumbo frame size
9.216KB
** Maximum number of vlans
256
VLAN ID range
VID 1 to 4094
IGMP packet
512
Priority queue
4
Packet buffer size
1 Mb
LED interface
LED indicator
PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial interface
Console port
RS-232 (TxD, RxD, GND), 8-PIN Rj45 (115200, n, 8, 1)
USB interface
USB connector
USB Type A (reserved)
Input/output interface
Alarm function channel
1, relay output: 1 A@24 VDC
Digital input channel
1
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Button
Reset button
DIP switch configuration
DIP switch
Turbo Ring, Master, Coupler, reservation
Power supply parameter
join
2 detachable 4-contact terminals
The power module is preinstalled
-LV/-LV-T Model: PWR-100-LV
-HV/-HV-T Model: PWR-105-HV-I
-LVA/-LVA-T Model: PWR-101-LV-BP-I
-LVB/-LVB-T Model: PWR-103-LV-VB-I
Look out
The EDS-4012 series supports modular power supplies. The model name and power specifications are determined by the power module to be installed.
For example:
EDS-4012-4GS-T + PWR-100–LV = EDS-4012-4GS-LV-T
EDS-4012-4GS-T + PWR-105-HV-I = EDS-4012-4GS-HV-T
If other Psus are installed, refer to the specifications of the corresponding Psus. For example, if you replace the EDS4012-4GS-LV-T with PWR-105-HV-I
For details, see EDS-4012-4GS-HV-T specifications.
Input voltage
-LV/-LV-T Model: 12/24/48 VDC, redundant dual input
-HV/-HV-T Model: 110/220 VDC/VAC, single input
-LVA/-LVA-T Model: 48 VDC, with two redundant inputs
-LVB/-LVB-T Model: 12/24/48 VDC, redundant dual power input
Operating voltage
-LV/-LV-T Models: 9.6 to 60 VDC
-HV/-HV-T Models: 88 to 300 VDC, 85 to 264 VAC
-LVA/-LVA-T Model: 44 to 57 VDC (for PoE+ output, > 52 VDC is recommended)
-LVB/-LVB-T Model: 12 to 57 VDC (for PoE+ output, > 52 VDC is recommended)
Input current
-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
-HV/-HV-T Models: 110-220 VAC, 50-60 Hz, 0.30-0.20A or 110-220 VDC, 0.30-0.20A
-LVA/-LVA-T Model: 48 VDC, 5.42 A
-LVB/-LVB-T Model: 12/48 VDC, 7.46/4.27A or 24 VDC, 7.26A
Power consumption (maximum)
EDS-4012-4GS-LV/-T Model: 10.52W
EDS-4012-4GS-HV-/T Model: 12.22W
EDS-4012-4GC-LV/-T Model: 10.7W
EDS-4012-4GC-HV/-T Model: 13.35W
EDS-4012-8P-4GS-LVA/-T Model:
No PoE: 13.34 W
With PoE: ** 240W, for total PD power consumption @48VDC input
EDS-4012-8P-4GS-LVB/-T Model:
None PoE: 15.32 W
With PoE:
** Large 180 W, for total PD power consumption @ 48 VDC input
** Max 150 W, for total PD power consumption @ 24 VDC input (** Max 120 W, for -T model)
** Large 62 W, for total PD power consumption @ 12 VDC input
** Large PoE power output/port
90 W
Overload current protection
support
Reverse protection
support
Mechanical characteristic
IP level
IP40
dimension
55 x 140 x 120 mm (2.17 x 5.51 x 4.72 inches)
weight
827 g (1.82 lb)
Install
Rail mount, wall mount (with optional kit)
shell
metal
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
Industrial network security
IEC 62443-4-1
IEC 62443-4-2
secure
UL 61010-2-201, EN 62368-1 (LVD)
EMC
EN 55032/35, EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power supply: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power supply: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Vibration
IEC 60068-2-6
strike
IEC 60068-2-27
Free falling body
IEC 60068-2-32
rail traffic
EN 50121-4
Traffic control
NEMA TS2
MTBF
time
EDS-4012-4GC-LV/-T Model: 1,036,336 hours
EDS-4012-4GC-HV/-T Model: 497,392 hours
EDS-4012-4GS-LV/-T Model: 874,838 hours
EDS-4012-4GS-HV/-T Model: 456,870 hours
EDS-4012-8P-4GS-LVA/-T Model: 799,780 hours
EDS-4012-8P-4GS-LVB/-T Model: 759,924 hours
Standard
Telcordia SR332
