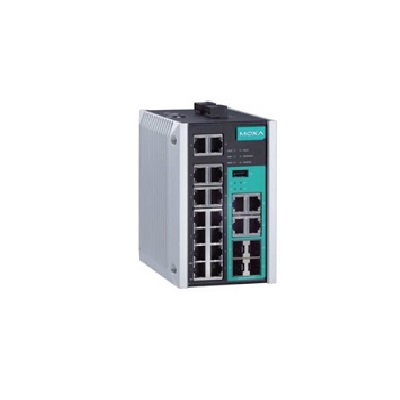

About: MOXA/ MOxa Switch EDS-518E-4GTXSFP 18-port switch, EDS-518E compact 18-port managed industrial Ethernet switch is equipped with four combo Gigabit Ethernet ports and a built-in RJ45 port or SFP slot for Gigabit optical network communication applications. The 14 100 gigabit Ethernet ports support a variety of cable and fiber port combinations, enabling the EDS-518E series to provide a more flexible solution for network and application design. Ethernet redundancy technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP enhance system reliability and backbone network availability. The EDS-518E is also equipped with state-of-the-art management and safety features.
Product characteristics
DHCP Option 82 is used to assign IP addresses based on different policies
Supports device management and monitoring over EtherNet/IP, PROFINET and Modbus TCP protocols
IGMP snooping and GMRP are used to filter multicast traffic
Port-based vlans, IEEE 802.1Q vlans, and GVRP simplify network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) improves network stability
Port aggregation optimizes network bandwidth
Supports the port mirroring function for online debugging
Automatic exception warning via email and relay output
SNMPv1/v2c/v3 supports different levels of network management
RMON supports proactive and efficient network monitoring
Fiber Check™ provides digital diagnostic monitoring (DDM) capabilities and event warnings for MST/MSC/SSC/SFP fiber ports
Bandwidth management to prevent unstable network status
Port locking based on MAC address to prevent unauthorized access
ABC-02-USB (Automatic Backup Configurator) is supported for system configuration backup/recovery and firmware upgrade
Four gigabit and 14 100 Gigabit Ethernet ports, supporting cable and fiber
Support for Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches), and RSTP/STP/MSTP network redundancy
RADIUS, TACACS+, MAB authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and Sticky MAC addresses are used to enhance network security
Safety features based on IEC 62443
Supports device management and monitoring over EtherNet/IP, PROFINET and Modbus TCP protocols
Fiber Check™ - Provides comprehensive MST/MSC/SSC/SFP fiber port status monitoring and warning
MXstudio makes it easy to visualize industrial networks
V-ON™ supports millisecond level multicast data and video network recovery
Product parameter
Alarm function channel
1, pure resistive load: 1 A@24 VDC
Button
Reset button
Digital input channel
1
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
EDS-518E-4GTXSFP: 14
EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 12
All models support:
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
Combo port (10/100/1000BaseT (X) or 100/1000BaseSFP+)
4
10/100/1000BaseT (X) port (RJ45 connector)
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
100BaseFX Port (multi-mode SC connector)
EDS-518E-MM-SC-4GTXSFP Series: 2
100BaseFX Port (multi-mode ST connector)
EDS-518E-MM-ST-4GTXSFP Series: 2
100BaseFX Port (Single mode SC connector)
EDS-518E-SS-SC-4GTXSFP Series: 2
Optical fiber
Read more
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1p, for service levels
IEEE 802.1Q, used for VLAN tags
IEEE 802.1X, used for authorization authentication
IEEE 802.3ad, used for LACP port aggregation
Ethernet software features
filtration
802.1Q VLAN, port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Industrial agreement
EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
manage
LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, and Flow control (traffic control), IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundant protocol
Link aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
secure
Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port lock, RADIUS, SSH, SMTP using TLS
Time service
NTP Server/Client, SNTP
Exchange characteristic
IGMP packet
2048
Size of the MAC address table
16 K
** Maximum number of vlans
64
Packet buffer size
1 Mb
Priority queue
4
VLAN ID range
VID 1 to 4094
USB interface
Memory port
USB Type A
LED interface
LED indicator
PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 100M (optical fiber port), Gigabit Combo port, MSTR/HEAD, CPLR/TAIL
Serial interface
Console port
USB serial console (Type B connector)
DIP switch configuration
DIP switch
Turbo Ring, Master, Coupler, reservation
Power supply parameter
join
2 detachable 4-contact terminals
Input current
EDS-518E-4GTXSFP series: 0.37A@24 VDC
EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 0.41A@24 VDC
Input voltage
12/24/48/-48 VDC, redundant dual power inputs
Operating voltage
9.6 to 60 VDC
Overload current protection
support
Reverse protection
support
Mechanical characteristic
shell
metal
IP level
IP30
dimension
94 x 135 x 137 mm (3.7 x 5.31 x 5.39 inches)
weight
1518 g (3.35 lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
secure
UL 508, EN 60950-1 (LVD)
EMC
EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power supply: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power supply: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime affairs
DNV-GL, LR, ABS, NK
substation
IEC 61850-3, IEEE 1613
rail traffic
EN 50121-4
Traffic control
NEMA TS2
strike
IEC 60068-2-27
Free falling body
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF
time
723,953 hours
Standard
Telcordia (Bellcore), GB
