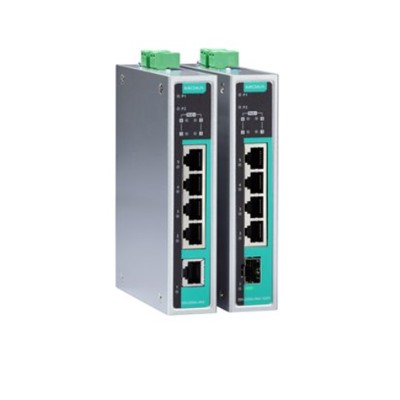

EDS-G205A-4PoE Intelligent 5-port unmanaged full Gigabit Industrial Ethernet switch with power over Ethernet for 2 to 5 ports. This switch is classified as a power supply device (PSE), and when used in this way, the EDS-G205A-4PoE switch provides centralized power supply up to 36 W of power per port, reducing the work of installing power supplies.
This switch can power IEEE 802.3af/at standard devices (receiving devices) without additional wiring, and supports IEEE 802.3/802.3u/802.3x, 10/100/1000M, full/half duplex, MDI/MDI-X adaptive, It provides an economical high bandwidth solution for industrial Ethernet communication.
Characteristics and advantages
Full Gigabit Ethernet port
Support IEEE 802.3af/at, PoE+ standards
Each PoE port can supply up to 36 W
12/24/48 VDC redundant dual power input
Supports 9.6 KB jumbo frames
Intelligent power consumption detection and classification
Intelligent PoE overcurrent and short circuit protection
Support -40 to 75°C operating temperature (-T model)
Connection: 2 detachable 2-contact terminals
Input voltage: 12/24/48 VDC, redundant dual power input
Operating voltage: 12 to 57 VDC
Overload current protection: Supported
Power consumption (Max) : maximum 11.73W full load, no PD loss
Reverse protection: Supported
Input current: 5.65A@24 VDC
Power budget:
Total PD loss 62 W (Max) @ 12 VDC; 36 W per PoE port (Max)
Total PD loss 120 W (Max) @ 24 VDC; 36 W per PoE port (Max)
Total PD loss 144 W (Max) @ 48 VDC; 36 W per PoE port (Max)
Case: Metal
IP level: IP30
Dimensions: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 inches)
Weight: 300 g (0.66 lb)
Mounting: rail mounting, wall mounting (with optional kit)
Working temperature:
Standard models: 0 to 60°C (32 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging) : -40 to 85°C (-40 to 185°F)
Relative humidity: 5 to 95% (non-condensing)
