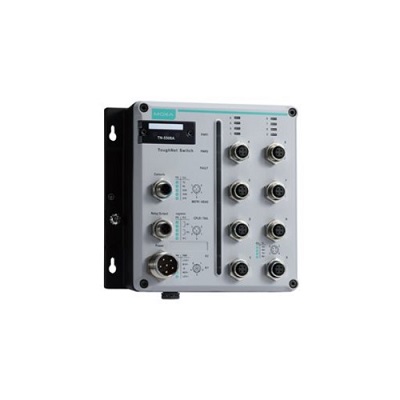

The MOXA/ MOSA Industrial Ethernet Switches TN-5516A-WV-T, ToughNet TN-5500A series M12 managed industrial Ethernet switches are designed for industrial applications in harsh environments. The TN-5500A series switches are tightly and securely connected through the strong M12 connector to ensure the stable operation of network equipment without worrying about the problems caused by external interference such as vibration and shock. The TN-5500A series comes with either 8 or 16 100 Gigabit Ethernet M12 ports, including eight PoE (Power over Ethernet) ports that comply with IEEE 802.3at/af standards, two ports on the bottom for Gigabit Ethernet interfaces, and an optional bypass relay function. PoE switches can be used as power supply devices (PSE), providing up to 30 W of power per port, and are suitable for powering electrical devices that comply with IEEE 802.3at/af standards, such as IP monitoring, wireless access and IP telephony.
Product characteristics
Up to 2 Gigabit Ethernet ports with optional bypass relay
Supports eight PoE ports that comply with IEEE 802.3at/af standards
24 to 110 VDC isolated power input
Comply with all EN 50155 mandatory test items
Support -40 to 75°C operating temperature
Support for Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches), and RSTP/STP/MSTP network redundancy
Product parameter
Input/output interface
Alarm function channel
2 x relay output, with an M12 A-coded 5-pin male connector, pure resistive load: 1 A@30 VDC
Ethernet interface
10/100/1000BaseT (X) port, Q-ODC fiber connector
TN-5510A-2GLSX Series: 2
TN-5510A-8PoE-2GLSX Series: 2
10/100/1000BaseT (X) port (M12 X-Coded 8-pin female connector)
TN-5510A-2GTX Series: 2
TN-5510A-8PoE-2GTX Series: 2
TN-5518A-2GTX Series: 2
TN-5518A-8PoE-2GTX Series: 2
10/100/1000BaseT (X) port (M12 X-Coded 8-pin female connector with bypass function)
TN-5510A-2GTXBP Series: 2
TN-5510A-8PoE-2GTXBP Series: 2
10/100BaseT (X) port (M12 D-coded 4-pin hole connector)
TN-5508A/5510A series non-POE model: 8
TN-5516A/5518A series non-POE model: 16
TN-5516A/5518A series PoE Model: 8
PoE port (10/100BaseT (X), M12 D-coded 4-pin female connector)
TN-5500A series PoE model: 8
Standard
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1p, for service levels
IEEE 802.1Q, used for VLAN tags
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1X, used for authorization authentication
IEEE 802.3, for 10BaseT
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3ad, used for LACP port aggregation
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3x for flow control
TN-5500A series PoE model: IEEE 802.3af/at for PoE/PoE+ output
TN-5510A Series 2GLSX Model: IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet software features
Broadcast forwarding
IP directed broadcast, broadcast forwarding
Configuration options
Command line interface (CLI), through the serial port /Telnet/SSH command line interface (CLI), Web Console (HTTP/HTTPS), Windows management tool
filtration
802.1Q, GMRP, GVRP, IGMP v1/v2/v3, port-based VLAN, static multicast
Industrial agreement
EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave)
manage
Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, and Flow control (Traffic control), HTTP, IPv4/IPv6, IOxpress, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet and Account Management
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundant protocol
Link aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC
secure
Broadcast storm protection, HTTPS/SSL, Local account access management, TACACS+, port locking, RADIUS, rate limiting, and SSH
Time service
IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP
Exchange characteristic
IGMP packet
256
** Maximum number of vlans
64
VLAN ID range
VID 1 to 4094
LED interface
LED indicator
STATE, PWR1, PWR2, FAULT, 10/100/1000M
Serial interface
Console port
M12 A-coded male connector
Power supply parameter
Input current
TN-5508A-WV series: 0.28A@24 VDC, 0.07A@110 VDC
TN-5508A-8PoE series: 7.6A@24VDC, 1.55A@110VDC
TN-5510A-2GTXBP series: 0.56A@24 VDC, 0.13A@110 VDC
TN-5510A-2GLSX series: 0.45A@24VDC, 0.1A@110VDC
TN-5510A-8PoE-2GTX Series: 7.90A@24 VDC, 1.6a@110 VDC
TN-5510A-8PoE-2GLSX series: 7.80A@24 VDC, 1.58A@110 VDC
TN-5516A-WV series: 0.39A@24 VDC, 0.09A@110 VDC
TN-5516A-8PoE series: 8.37A@24 VDC, 1.65A@110 VDC
TN-5518A-2GTX Series: 0.68A@24 VDC, 0.16A@110 VDC
TN-5518A-8PoE-2GTX Series: 8.66A@24 VDC, 1.69A@110 VDC
Input voltage
24/36/48/72/96/110 VDC, redundant dual power inputs
Power input quantity
TN-5500A Series non-POE models: 2
TN-5500A series PoE model: 1
Operating voltage
16.8 to 137.5 VDC
Overload current protection
support
Power adapter
M23 connector
Reverse protection
support
Total PoE power budget
TN-5500A series PoE model: 120 W
Mechanical characteristic
shell
metal
IP level
IP54
dimension
TN-5508A Series Non-POE model: 185 x 175.8 x 76 mm (7.28 x 6.92 x 2.99 inches)
TN-5508A Series PoE Model: 185 x 175.8 x 115 mm (7.28 x 6.92 x 4.53 inches)
TN-5510A Series non-POE model: 185 x 180.9 x 76 mm (7.28 x 7.12 x 2.99 inches)
TN-5510A Series PoE Model: 185 x 180.9 x 115 mm (7.28 x 7.12 x 4.53 inches)
TN-5510A-2GLSX-ODC Series: 185 x 204.3 x 76.0 mm (7.28 x 8.04 x 2.99 in)
TN-5510A-8PoE-2GLSX-ODC Series: 185 x 219.3 x 115 mm (7.28 x 8.63 x 4.53 inches)
TN-5516A Series non-POE model: 250 x 175.8 x 76 mm (9.84 x 6.92 x 2.99 in)
TN-5516A Series PoE Model: 250 x 175.8 x 115 mm (9.84 x 6.92 x 4.53 inches)
TN-5518A Series Non-POE model: 250 x 180.9 x 76 mm (9.84 x 7.12 x 2.99 inches)
TN-5518A Series PoE Model: 250 x 180.9 x 115 mm (9.84 x 7.12 x 4.53 inches)
weight
TN-5508A Series Non-POE model: 1,610g (3.54 lb)
TN-5508A Series PoE Model: 2,383g (5.25 lb)
TN-5510A Series Non-POE model: 1,805 g (3.97 lb)
TN-5510A Series PoE Model: 2,690 g (5.93 lb)
TN-5516A Series Non-POE model: 2,138g (4.71 lb)
TN-5516A Series PoE Model: 3,286g (7.24lb)
TN-5518A Series Non-POE model: 2,250g (4.96lb)
TN-5518A Series PoE Model: 3,439 g (7.58 lb)
Install
Guide rail installation (optional), wall-mounted installation
Protection
TN-5500A Series -CT Model: PCB protective coating
Working environment
Operating temperature
-40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Altitude
2000 m
Safety certification
EMC
EN 55032/24
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power supply: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power supply: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Free falling body
IEC 60068-2-31
Radio frequency
FCC
rail traffic
EN 50121-4, EN 50155, IEC 60571
Track fire protection
EN
