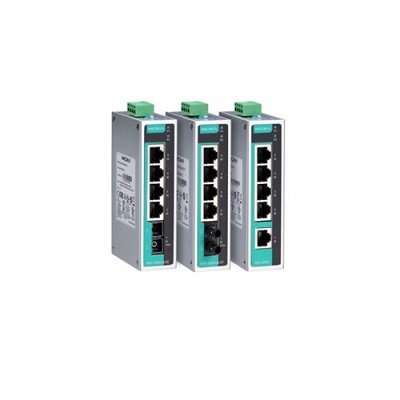

The EDS-205A-M-ST-T, EDS-205A series 5-port industrial Ethernet switches are equipped with IEEE 802.3 and IEEE 802.3U /x, 10/100M full/half duplex, MDI/MDI-X adaptive. The EDS-205A series provides 12/24/48 VDC (9.6 to 60 VDC) redundant dual power inputs, allowing simultaneous connection of 2 live DC power supplies. This series of switches is designed for harsh industrial environments such as: Marine (DNV/GL/LR/ABS/NK), rail transit, motorway or mobile applications (EN 50121-4/NEMA TS2/e-Mark) and complies with FCC, UL and CE standards.
Product characteristics
10/100BaseT (X) (RJ45 connector), 100BaseFX (multi-mode/single-mode, SC or ST connector)
12/24/48 VDC redundant dual power input
IP30 aluminum housing
Rugged hardware design, transportation (NEMA TS2/EN 50121-4/e-Mark) and maritime applications (DNV/GL/LR/ABS/NK)
Support -40 to 75°C operating temperature (-T model)
Product parameter
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
EDS-205A/205A-T: 5
EDS-205A-M-SC/M-ST/S-SC Series: 4
All models support:
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
100BaseFX Port (multi-mode SC connector)
EDS-205A-M-SC Series: 1
100BaseFX Port (multi-mode ST connector)
EDS-205A-M-ST Series: 1
100BaseFX Port (Single mode SC connector)
EDS-205A-S-SC Series: 1
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3x for flow control
Optical fiber
Read more
Exchange characteristic
Size of the MAC address table
1 K
Packet buffer size
384 kb
Processing type
store-and-forward
Power supply parameter
join
1 detachable 4-contact terminal
Input current
Eds-205a-205a-t: 0.09A@24 VDC
EDS-205A-M-SC/M-ST/S-SC series: 0.1A@ 24 VDC
Input voltage
12/24/48 VDC, redundant dual power inputs
Operating voltage
9.6 to 60 VDC
Overload current protection
support
Reverse protection
support
DIP switch configuration
Ethernet interface
Broadcast storm protection
Mechanical characteristic
shell
aluminum
IP level
IP30
dimension
30 x 115 x 70 mm (1.18 x 4.52 x 2.76 inches)
weight
175 g (0.39 lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power supply: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power supply: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime affairs
ABS, DNV-GL, LR, NK
rail traffic
EN 50121-4
secure
UL 508
strike
IEC 60068-2-27
Traffic control
NEMA TS2
Vibration
IEC 60068-2-6
Free falling body
IEC 60068-2-31
MTBF
time
3,040,784 hours
Standard
Telcordia (Bellcore), GB
