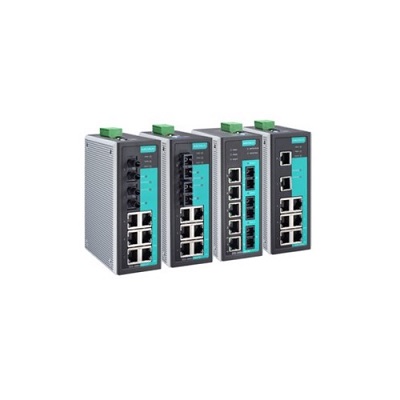

Description: MOXA/ MOsa EDS-408A-SS-SC MOsa network management switch, designed for industrial applications. The switch is equipped with a variety of practical management functions, such as: Turbo Ring, Turbo Chain, ring coupling, IGMP Snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning via email or relay. The Turbo Ring can be set up easily using the Web management interface or the DIP switch on the top panel of the EDS-408A switch.
Product characteristics
Support for Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches), and RSTP/STP network redundancy
IGMP Snooping, QoS, IEEE 802.1Q VLAN and port-based VLAN are supported
Easily manage your network through a Web browser, CLI, Telnet/ serial console, Windows administration tools, and ABC-01
PROFINET or EtherNet/IP enabled by default (PN or EIP model)
MXstudio makes it easy to visualize industrial networks
DHCP Option 82 is used to assign IP addresses based on different policies
Supports device management and monitoring of EtherNet/IP, Modbus TCP, and PROFINET protocols
Support for EtherNet/IP EDS (spreadsheet) files, custom AOI (Additional instructions), and FactoryTalk® View visual panels
PROFINET GSDML files and SIMATIC STEP 7 device ICONS are supported
Supports the port mirroring function for online debugging
Port-based vlans, IEEE 802.1Q vlans, and GVRP simplify network planning
QoS (IEEE 802.1p and TOS/DiffServ) improves network stability
RMON supports proactive and efficient network monitoring
SNMPv1/v2c/v3 supports different levels of network management
Bandwidth management to prevent unstable network status
Product parameter
IGMP group: 256
MAC address table size: 8 K
** Maximum Number of vlans: 64
Packet buffer size: 1 Mb
Priority queue: 4
VLAN ID Range: VID 1 to 4094
Case: Metal
IP level: IP30
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 inches)
Weight:
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC, EDS-408A-EIP/PN Series: 650 g (1.44 lb)
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 890 g (1.97 lb)
Mounting: rail mounting, wall mounting (with optional kit)
Working temperature:
Standard models: -10 to 60°C (32 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging) : -40 to 85°C (-40 to 185°F)
Relative humidity: 5 to 95% (non-condensing)
