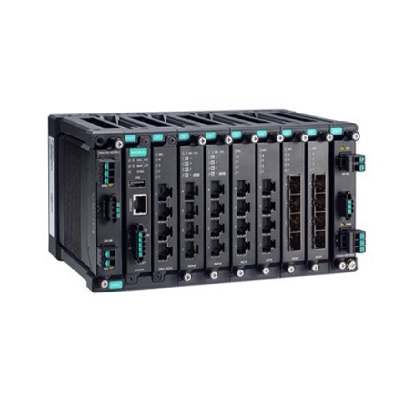

About: The MOXA/ MOsa Ethernet switches MDS-G4028-L3-T, MDS-G4028-L3 series modular switches are equipped with up to 28 Gigabit Ethernet ports, including 4 built-in fixed ports, 6 interface module expansion slots, and 2 power module slots, providing ample flexibility for a variety of applications. Designed to meet growing network demands, the highly compact MDS-G4000-L3 series simplifies installation and maintenance steps and features a hot-swappable module design that enables users to easily replace or add modules without shutting down switches or interrupting network operations.
Product characteristics
The Layer 3 routing function supports communication between different Lans
Multiple interface types 4 Port modules provide versatility
With a tool-free design, modules can be easily added or replaced without shutting down the switch
It is ultra-compact and supports a variety of installation methods for flexible installation
Rugged die-cast design for use in harsh environments
An intuitive Web interface based on HTML5 enables a seamless experience for different platforms
Product parameter
Ethernet interface
Preinstalled module
4 built-in fixed Gigabit Ethernet ports
module
Six slots for optional 4-port FE/GE modules
Slot combination
For more information, see the LM-7000H Module family product Datasheet
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad, used for LACP port aggregation
IEEE 802.1Q, used for VLAN tags
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1p, for service levels
IEEE 802.1X, used for authorization authentication
IEEE 802.3af/at for PoE/PoE+ output
Ethernet software features
manage
IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, and Port Mirror (port mirroring), Linkup Delay (link recovery delay), SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Loopback interface
filtration
GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
Redundant protocol
STP, RSTP, Turbo Ring v2, Turbo Chain, ring coupling, double homing, link aggregation
Routing redundancy
VRRP
secure
Broadcast storm protection, rate limiting, trusted access control, static port lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, login and password policies
Time service
SNTP, NTP Server/Client, and NTP authentication
agreement
IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Unicast routing
OSPF, static route
MIB
P-BRIDGE Indicates MIB and Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAEMIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, and RMON MIB Groups 1, 2, 3, 9
Exchange characteristic
Size of the MAC address table
16 K
** Maximum number of vlans
256
VLAN ID range
VID 1 to 4094
IGMP packet
1024
Priority queue
8
Packet buffer size
12 Mb
Serial interface
Console port
RS-232 (TxD, RxD, GND), 8-PIN RJ45 (115200, n, 8, 1)
USB interface
USB connector
USB Type A (reserved)
Input/output interface
Digital input channel
1 (MGMT Module)
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Alarm function channel
3 (MGMT, PWR1, PWR2 modules)
Relay output: 2A@ 30VDC
Power supply parameter
Input voltage
Install PWR-HV-P48:
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC
Install PWR-LV-P48:
24/48 VDC, PoE: 48 VDC
Install PWR-HV-NP:
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz
Install PWR-LV-NP:
24/48 VDC
Operating voltage
Install PWR-HV-P48:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC
Install PWR-LV-P48:
18 to 72 VDC (24/48 VDC, for hazardous environments), PoE: 46 to 57 VDC (48 VDC, for hazardous environments)
Install PWR-HV-NP:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz
Install PWR-LV-NP:
18 to 72 VDC
Input current
Install PWR-HV-P48:
** Large 0.11A@110VDC
** Large 0.06A@220VDC
** Large 0.29A@110VAC
** Large 0.18A@220 VAC
Install PCR-LV-P48 / PCR-LV-NP:
** Large 0.53A@24 VDC
** Large 0.28A@48VDC
** Large PoE power output/port
36 W
Total PoE power budget
** Large 360 W (with a power supply), for the total PD consumption, based on 48 VDC input, for PoE systems
** Large 360 W (with a power supply), for the total PD consumption, based on 53-57 VDC input, for PoE+ systems
** Large 720 W (with two power supplies), for total PD consumption, based on 48 VDC input, for PoE systems
** Large 720 W (with a power supply), for the total PD consumption, based on 53-57 VDC input, for PoE+ systems
Overload current protection
support
Reverse protection
support
Mechanical characteristic
IP level
IP40
dimension
218 x 115 x 163.25 mm (8.59 x 4.53 x 6.44 inches)
weight
2840 g (6.27 lb)
Install
Rail mounting, wall mounting (with optional kit), rack mounting (with optional kit)
Working environment
Operating temperature
Standard temperature models: -10 to 60°C (-14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
