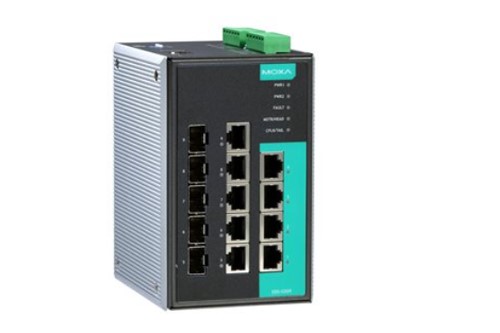

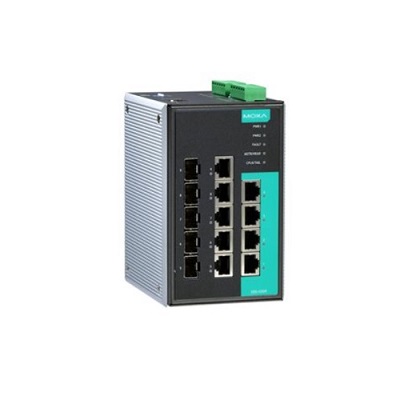

The EDS-G509-T, the EDS-G509 series is equipped with nine Gigabit Ethernet ports and up to five fiber ports, making it ideal for upgrading existing networks to gigabit rates or building new full-gigabit backbone networks. Gigabit transmission rates increase bandwidth, enabling high-performance networks to quickly transfer large amounts of video, voice, and data. Ethernet redundancy technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP enhance system reliability and backbone network availability. The EDS-G509 series is designed for demanding communications applications such as video and process monitoring, ITS and DCS systems that benefit from a scalable backbone communication network.
Product characteristics
Four 10/100/1000BaseT (X) and five combo Gigabit (10/100/1000BaseT (X) or 100/1000BaseSFP slots) Ethernet ports
Enhanced surge protection for serial port, LAN and power supply
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH are used to enhance network security
Easily manage your network through a Web browser, CLI, Telnet/ serial console, Windows administration tools, and ABC-01
MXstudio makes it easy to visualize industrial network management
Command line interface (CLI) for quick configuration of key management functions
DHCP Option 82 is used to assign IP addresses based on different policies
Support EtherNet/IP and Modbus TCP protocol device management and monitoring
Compatible with PROFINET protocol, transparent data transmission can be achieved
IGMP snooping and GMRP are used to filter multicast traffic
Compatible with ABC-01 (Automatic Backup Configurator) for system configuration backup
Port-based vlans, IEEE 802.1Q vlans, and GVRP simplify network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) improves network stability
Port aggregation optimizes network bandwidth
SNMPv1/v2c/v3 supports different levels of network management
RMON supports proactive and efficient network monitoring
Bandwidth management to prevent unstable network status
Port locking based on MAC address to prevent unauthorized access
Supports the port mirroring function for online debugging
Automatic exception warning via email and relay output
Product parameter
Input/output module
Alarm function channel
2, pure resistive load: 1 A@ 24 VDC
Digital input channel
2
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Ethernet interface
10/100/1000BaseT (X) port (RJ45 connector)
4
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
Combo port (10/100/1000BaseT (X) or 100/1000BaseSFP+)
5
Standard
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1p, for service levels
IEEE 802.1Q, used for VLAN tags
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1X, used for authorization authentication
IEEE 802.3, for 10BaseT
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3ad, used for LACP port aggregation
IEEE 802.3u for 100BaseT (X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX
Ethernet software features
filtration
802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, port-based VLAN
Industrial agreement
EtherNet/IP, Modbus TCP
manage
Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, and Flow Control (traffic control), IPv4/IPv6, LLDP, Port Mirror (port mirroring), RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundant protocol
Link aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
secure
Broadcast storm protection, HTTPS/SSL, port lock, RADIUS, SSH, TACACS+, SNMPv3
Time service
NTP Server/Client, SNTP
Exchange characteristic
IGMP packet
256
Size of the MAC address table
8 K
** Maximum number of vlans
64
Packet buffer size
1 Mb
Priority queue
4
VLAN ID range
VID 1 to 4094
LED interface
LED indicator
PWR1, PWR2, FAULT, 10/100/1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL
Serial interface
Console port
RS-232 (TxD, RxD, GND), 8-PIN RJ45 (115200, n, 8, 1)
DIP switch configuration
DIP switch
Turbo Ring, Master, Coupler, reservation
Power supply parameter
Power adapter
2 detachable 6-contact terminals
Input current
0.69A@24 VDC
Input voltage
12/24/48 VDC, redundant dual power inputs
Operating voltage
9.6 to 60 VDC
Overload current protection
support
Reverse protection
support
Mechanical characteristic
shell
metal
IP level
IP30
dimension
87.1 x 135 x 107 mm (3.43 x 5.31 x 4.21 inches)
weight
1510 g (3.33 lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
EDS-G509:0 to 60°C (32 to 140°F)
EDS-G509-T: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
Free falling body
IEC 60068-2-32
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power supply: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power supply: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime affairs
ABS, DNV-GL, LR, NK
rail traffic
EN 50121-4
secure
EN 60950-1, UL 508
strike
IEC 60068-2-27
Vibration
IEC 60068-2-6
MTBF
time
598,659 hours
Standard
Telcordia (Bellcore), GB
