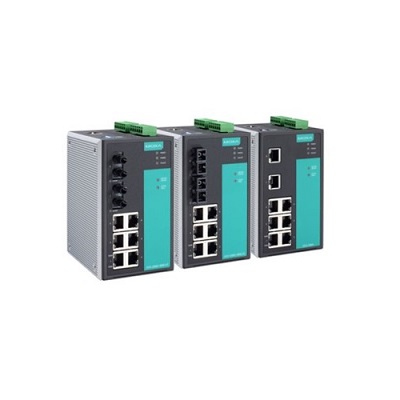

About: Eds-508a-mm-sc, EDS-508A 8-port managed industrial Ethernet switches with the most advanced Turbo Ring and Turbo Chain (self-healing time < 20 ms), RSTP/STP and MSTP network redundancy technology, Improved system reliability and backbone network availability. Supported in -40 to 75°C wide temperature models, the EDS-508A switch is also equipped with the best management and security features for any harsh industrial environment.
Product characteristics
Support for Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches), and RSTP/STP/MSTP network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH are used to enhance network security
Easily manage your network through a Web browser, CLI, Telnet/ serial console, Windows administration tools, and ABC-01
MXstudio makes it easy to visualize industrial network management
Product parameter
Alarm function channel
2, relay output: 1 A@24 VDC
Digital input channel
2
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Button
Reset button
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
EDS-505A/505A-T: 5
EDS-505A-MM-SC/MM-ST/SS-SC Series: 3
All models support:
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
100BaseFX Port (multi-mode SC connector)
EDS-505A-MM-SC Series: 2
100BaseFX Port (multi-mode ST connector)
EDS-505A-MM-ST Series: 2
100BaseFX Port (Single mode SC connector)
EDS-505A-SS-SC Series: 2
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.1X, used for authorization authentication
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q, used for VLAN tags
IEEE 802.1p, for service levels
IEEE 802.3x for flow control
IEEE 802.3ad, used for LACP port aggregation
Optical fiber
Optical fiber
Read more
Ethernet software features
filtration
802.1Q VLAN, port-based VLAN, IGMP v1/v2, GVRP, GMRP
Industrial agreement
EtherNet/IP, Modbus TCP
manage
IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, and DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP
MIB
Mib-ii, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundant protocol
STP, MSTP, RSTP, LACP, Link aggregation, Turbo Chain, Turbo Ring v1/v2
secure
HTTPS/SSL, RADIUS, TACACS+, port lock, SSH, broadcast storm protection
Time service
NTP Server/Client, SNTP
Exchange characteristic
IGMP packet
256
Size of the MAC address table
8 K
** Maximum number of vlans
64
Packet buffer size
1 Mb
Priority queue
4
VLAN ID range
VID 1 to 4094
LED interface
LED indicator
PWR1, PWR2, FAULT, 10/100M (TP port), 100M (optical fiber port), MSTR/HEAD, CPLR/TAIL
Serial interface
Console port
RS-232 (TxD, RxD, GND), 8-PIN RJ45 (115200, n, 8, 1)
DIP switch configuration
Ethernet interface
Turbo Ring, Master, Coupler, reservation
Power supply parameter
join
2 detachable 6-contact terminals
Input voltage
12/24/48 VDC, redundant dual power inputs
Operating voltage
9.6 to 60 VDC
Input current
EDS-505A/EDS-505A-T: 0.21A@24 VDC
EDS-505A-MM-SC/MM-ST/SS-SC series: 0.29A@24 VDC
Overload current protection
support
Input/output interface
Reverse protection
support
Mechanical characteristic
shell
metal
IP level
IP30
dimension
80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 inches)
weight
1040 g (2.3lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
