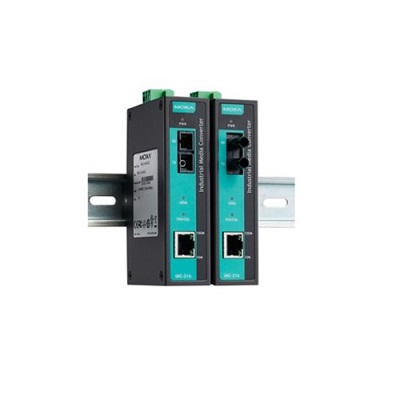

MOXA/ MOsa Photoelectric converter IMC-21A-M-ST, the IMC-21A is an entry-level industrial 10/100BaseT (X) to 100BaseFX converter designed for reliable and stable operation in harsh industrial environments. The converter operates reliably at temperatures from -40 to 75°C. The rugged housing design ensures that your Ethernet equipment can withstand the rigors of industrial environments. The IMC-21A converter can be easily installed in the rail or distribution box.
Product characteristics
Supports multi-mode or single mode, with SC or ST fiber connector
Link Failure Notification (LFPT)
Support -40 to 75°C operating temperature (-T model)
FDX/HDX/10/100/ Auto/Mandatory can be selected by DIP switch
Product parameter
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
1
100BaseFX Port (multi-mode SC connector)
IMC-21A-M-SC Series: 1
100BaseFX Port (multi-mode ST connector)
IMC-21A-M-ST Series: 1
100BaseFX Port (Single mode SC connector)
IMC-21A-S-SC Series: 1
Electromagnetic isolation protection
1.5kV (built-in)
Optical fiber
Read more
Power supply parameter
Input current
265 mA @ 12 VDC
Input voltage
12 to 48 VDC
Overload current protection
support
Power adapter
terminal
Power consumption
265 mA @ 12 VDC
Mechanical characteristic
shell
metal
IP level
IP30
dimension
30 x 125 x 79 mm (1.19 x 4.92 x 3.11 inches)
weight
170 g (0.37 lb)
Install
Rail mounting
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 75°C (-40 to 167°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 1 V/m
IEC 61000-4-4 EFT: Power supply: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power supply: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIP
Environmental testing
IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
secure
EN 60950-1, UL 60950-1
Vibration
IEC 60068-2-6
MTBF
time
353,000 hours
Standard
MIL-HDBK-217F
