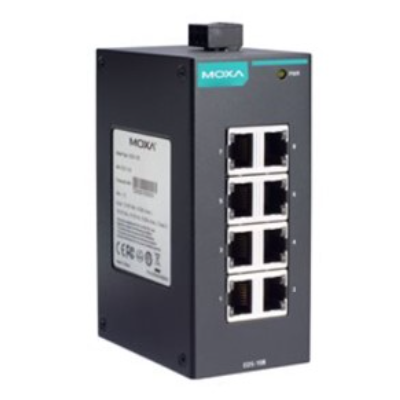

About: The EDS-108 series Industrial Ethernet switch is an entry-level industrial 8-port Ethernet switch that supports IEEE 802.3, IEEE 802.3U and IEEE 802.3x. It also supports standard IEEE 802.3 Ethernet data frame forwarding for industrial network communications (such as PROFINET NRT/RT data frame forwarding). This series of switches is equipped with 10/100M, full/half duplex, MDI/MDIX adaptive RJ45 ports. The EDS-108 series supports -10 to 60°C operating temperatures and can be easily installed in tight Spaces such as control boxes. The rail mount, wide temperature, and IP30 housing with LED indicators make the EDS-108 switch reliable and easy to use.
Product characteristics
10/100BaseT (X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connector)
Support for IEEE802.3/802.3u/802.3x
Broadcast storm protection
Support guide mounting
Support -10 to 60°C operating temperature
Product parameter
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
Automatic MDI/MDI-X connection
Full/half duplex mode
Automatic MDI/MDI-X connection
100BaseFX Port (multi-mode SC connector)
EDS-108-M-SC: Supported
Optical fiber
Optical fiber
Read more
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3x for flow control
Exchange characteristic
Processing type
store-and-forward
Size of the MAC address table
2 K
Packet buffer size
768 kb
Power supply parameter
join
1 detachable 3-contact terminal
Input current
EDS-108:0.07A@24 VDC
EDS-108-M-SC series: 0.1A@ 24 VDC
Input voltage
24 VDC
Operating voltage
12 to 48 VDC
Overload current protection
2.5A@24 VDC
Reverse protection
support
Mechanical characteristic
dimension
50.3 x 124 x 84.8 mm (1.98 x 4.88 x 3.34 inches)
Install
Rail mounting
IP level
IP30
shell
metal
weight
170 g (0.38 lb)
Working environment
Relative humidity
5 to 95% (non-condensing)
Operating temperature
-10 to 60°C (14 to 140°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Safety certification
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power supply: 1 kV; Signal: 0.5kV
IEC 61000-4-5 Surge: Power supply: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Free falling body
IEC 60068-2-31
strike
IEC 60068-2-27
Vibration
IEC 60068-2-6
MTBF
time
7,492,000 hours
Standard
Telcordia (Bellcore), GB
