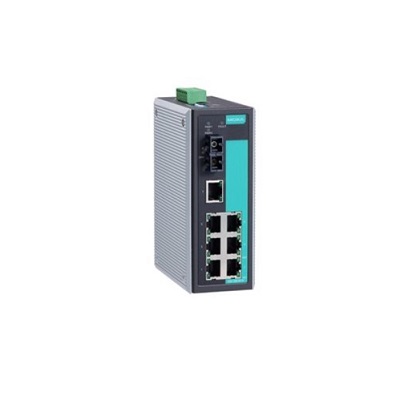

The EDS-308-S-SC, EDS-308 Industrial Ethernet switch provides an economical solution for industrial Ethernet communication. This 8-port switch has a built-in relay warning function to alert network administrators in the event of a power failure or port outage. In addition, the switch is designed for harsh industrial environments.
Product characteristics
Relay output warning when power failure and port interruption occur
Broadcast storm protection
Support -40 to 75°C operating temperature (-T model)
Product parameter
Input/output interface
Alarm function channel
Pure resistive load: 1 A@ 24 VDC
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
EDS-308/308-T: 8
EDS - 308 - M - SC / 308 - M - SC - 308 - S - T/SC/T / 308 - SC - 308 - S - S - SC - 80:7
EDS-308-MM-SC/308-MM-SC-T/308-MM-ST/308-MM-ST-T/308-SS-SC/308-SS-SC-T/ 308-SS-SC-80:6
All models support:
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
100BaseFX Port (multi-mode SC connector)
EDS-308-M-SC: 1
EDS-308-M-SC-T: 1
EDS-308-MM-SC: 2
EDS-308-MM-SC-T: 2
100BaseFX Port (multi-mode ST connector)
EDS-308-MM-ST: 2
EDS-308-MM-ST-T: 2
100BaseFX Port (Single mode SC connector)
EDS-308-S-SC: 1
EDS-308-S-SC-T: 1
EDS-308-SS-SC: 2
EDS-308-SS-SC-T: 2
100BaseFX port (single mode SC connector, 80 km)
EDS-308-S-SC-80:1
EDS-308-SS-SC-80:2
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3x for flow control
Optical fiber
Read more
DIP switch configuration
Ethernet interface
Port interrupt alarm
Exchange characteristic
Size of the MAC address table
2 kb
Packet buffer size
768 K
Processing type
store-and-forward
Power supply parameter
Input current
EDS-308/308-T: 0.07A@24 VDC
EDS-308-M-SC/S-SC series, 308-S-SC-80:0.12A@24 VDC
EDS-308-MM-SC/MM-ST/SS-SC series, 308-SS-SC-80:0.15A@24 VDC
join
1 detachable 6-contact terminal
Operating voltage
9.6 to 60 VDC
Input voltage
Redundant dual power inputs, 12/24/48 VDC
Reverse protection
support
Overload current protection
support
Mechanical characteristic
shell
metal
IP level
IP30
dimension
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 inches)
weight
790 g (1.75 lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
EMI
CISPR 32, FCC Part 15B Class A
Maritime affairs
DNV-GL
EMC
EN 55032/24
Vibration
IEC 60068-2-6
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power supply: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power supply: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
secure
UL 508, UL 60950-1, CSA C22.2 No. 60950-1
strike
IEC 60068-2-27
Free falling body
IEC 60068-2-32
MTBF
time
255,528 hours
Standard
MIL-HDBK-217F
