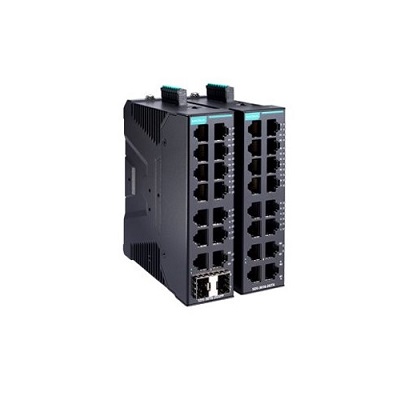

MOXA/ MOsa Ethernet Switch SDS-3016-2GSFP, SDS-3016 Intelligent Ethernet switch is the ideal choice for industrial automation engineers and automation machine manufacturers to ensure that their networks meet the application requirements of Industry 4.0. Smart switches breathe new life into machines and control cabinets, are easy to configure and install, and simplify everyday tasks. In addition, the switch can be monitored and easily maintained throughout the product lifecycle.
Product characteristics
Compact and flexible housing design for tight Spaces
Web-based GUI for easy device configuration and management
Web-based GUI to diagnose, detect and prevent problems based on port statistics
Multilingual Web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German and French
Supports RSTP/STP for network redundancy
Support for MRP client redundancy to ensure high network availability
Support for EtherNet/IP, PROFINET and Modbus TCP industrial protocols makes it easy to integrate and monitor automated HMI/SCADA systems
IP port binding ensures rapid replacement of critical devices without the need to reassign IP addresses
The rotary DIP switch performs profile based Settings without the use of a Web browser
Safety features based on IEC 62443
Product parameter
Input/output interface
Alarm function channel
1, relay output: 1 A@24 VDC
Button
Reset button
Digital input channel
1
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
14
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
10/100/1000BaseT (X) port (RJ45 connector)
2 (SDS-3016-2GTX Series)
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
100/1000BaseSFP port
2 (SDS-3016-2GSFP series)
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X)
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1Q, used for VLAN tags
IEEE 802.1p, for service levels
Ethernet software features
Industrial agreement
EtherNet/IP, Modbus TCP, PROFINET IO devices
manage
Back Pressure Flow control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, and SNMP Inform, SNMPv1/v2c/v3, Syslog
MIB
RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB
Redundant protocol
RSTP, STP, MRP (Client)
secure
Broadcast storm protection, HTTPS/SSL, SNMPv3, and port lock
Time service
NTP Server/Client, SNTP
filtration
802.1Q VLAN
Rotary switch configuration
Industrial configuration file
Industrial configuration file
Read more
Exchange characteristic
Size of the MAC address table
8 K
** Maximum number of vlans
8
VLAN ID range
VID 1 to 4094
Packet buffer size
3 Mb
USB interface
Memory port
USB Type A
LED interface
LED indicator
PWR1, PWR2, STATE, FAULT, 10/100M, 1000M (TP port)
Power supply parameter
join
2 detachable 4-contact terminals
Input voltage
12/24/48/-48 VDC, redundant dual power inputs
Operating voltage
9.6 to 60 VDC
Input current
SDS-3016-2GTX Series: 12-48 VDC, 0.858 A (Max)
SDS-3016-2GSFP Series: 12-48 VDC, 0.99 A (maximum value)
Overload current protection
support
Reverse protection
support
Mechanical characteristic
shell
metal
IP level
IP40
dimension
36 x 135 x 111 mm (1.42 x 5.32 x 4.37 inches)
weight
590 g (1.3 lb)
Install
Rail mounting
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
EMC
EN 55032/35, EN 61000-6-2/-6-4
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power supply: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power supply: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 30 A/m
secure
EN 62368-1, UL 61010-2-201
strike
IEC 60068-2-27
Free falling body
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF
time
1,109,179 hours
Standard
Telcordia (Bellcore), GB
