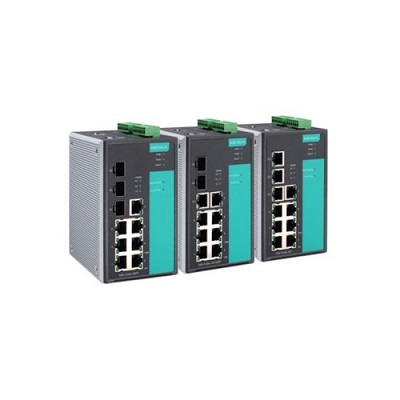

Description: The EDS-510A-3GT, EDS-510A Gigabit managed redundant industrial Ethernet switch is equipped with up to 3 Gigabit Ethernet ports, which is ideal for building a Turbo Ring Gigabit redundant network, and the spare Gigabit Ethernet port can be used for uplink. Ethernet redundancy technologies such as Turbo Ring, Turbo Chain (self-healing time < 20 ms), RSTP/STP, and MSTP enhance system reliability and backbone network availability.
Product characteristics
Two Gigabit Ethernet ports are used to build a redundant ring network and one Gigabit Ethernet port is used for the uplink
Support for Turbo Ring and Turbo Chain (self-healing time <20 ms @ 250 switches), and RSTP/STP/MSTP network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH are used to enhance network security
Easily manage your network through a Web browser, CLI, Telnet/ serial console, Windows administration tools, and ABC-01
Product parameter
Input/output interface
Alarm function channel
2, pure resistive load: 1 A@ 24 VDC
Digital input channel
2
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Button
Reset button
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
7
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
10/100/1000BaseT (X) port (RJ45 connector)
EDS-510A-1GT2SFP Series: 1
EDS-510A-3GT Series: 3
Supported features:
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
1000BaseSFP slot
EDS-510A-1GT2SFP Series: 2
EDS-510A-3SFP Series: 3
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.1X, used for authorization authentication
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q, used for VLAN tags
IEEE 802.1p, for service levels
IEEE 802.3x for flow control
IEEE 802.3ad, used for LACP port aggregation
Ethernet software features
filtration
802.1Q VLAN, port-based VLAN, IGMP v1/v2, GVRP, GMRP
Industrial agreement
EtherNet/IP, Modbus TCP
manage
IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, and DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP
MIB
Mib-ii, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundant protocol
STP, MSTP, RSTP, LACP, Link aggregation, Turbo Chain, Turbo Ring v1/v2
secure
HTTPS/SSL, RADIUS, TACACS+, port lock, SSH
Time service
NTP Server/Client, SNTP
Exchange characteristic
IGMP packet
256
Size of the MAC address table
8 K
** Maximum number of vlans
64
Packet buffer size
1 Mb
Priority queue
4
VLAN ID range
VID 1 to 4094
LED interface
LED indicator
PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (optical fiber port), MSTR/HEAD, CPLR/TAIL
Serial interface
Console port
RS-232 (TxD, RxD, GND), 8-PIN RJ45 (115200, n, 8, 1)
DIP switch configuration
Ethernet interface
Turbo Ring, Master, Coupler, reservation
Power supply parameter
join
2 detachable 6-contact terminals
Input current
EDS-510A-1GT2SFP series: 0.38A@24 VDC
EDS-510A-3GT series: 0.55A@24 VDC
EDS-510A-3SFP series: 0.39A@24 VDC
Input voltage
24 VDC, redundant dual power input
Operating voltage
12 to 45 VDC
Overload current protection
support
Reverse protection
support
Mechanical characteristic
shell
metal
IP level
IP30
dimension
80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 inches)
weight
1170 g (2.58 lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
