Introduction: The EDS-518A-MM-ST-T, EDS-518A 18-port EDS-518A industrial Ethernet switch is equipped with two combo Gigabit Ethernet ports, a built-in RJ45 port or SFP slot, which can be used for gigabit optical network communication applications. Turbo Ring and Turbo Chain (self-healing time < 20 ms) Ethernet redundancy technologies enhance system reliability and backbone network availability. The EDS-518A is also equipped with state-of-the-art management and safety features.

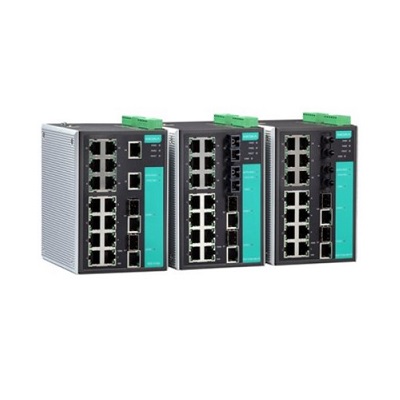

MOXA/ MOSA industrial network management switch EDS-518A-MM-ST-T
Product characteristics
2 Gigabit and 16 100 Gigabit Ethernet ports, supporting cable and fiber
Support for Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches), and RSTP/STP/MSTP network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH are used to enhance network security
Easily manage your network through a Web browser, CLI, Telnet/ serial console, Windows administration tools, and ABC-01
Product parameter
Input/output interface
Alarm function channel
Pure resistive load: 1 A@ 24 VDC
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
EDS-518A/518A-T: 16
EDS-518A-MM-SC/MM-ST/SS-SC Series: 14
EDS-518A-SS-SC-80:14
All models support:
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
100BaseFX Port (multi-mode SC connector)
EDS-518A-MM-SC Series: 2
100BaseFX Port (multi-mode ST connector)
EDS-518A-MM-ST Series: 2
100BaseFX Port (Single mode SC connector)
EDS-518A-SS-SC Series: 2
100BaseFX port, single mode SC connector, 80 km
EDS-518A-SS-SC-80 Series: 2
Combo port (10/100/1000BaseT (X) or 1000BaseSFP)
2
Optical fiber
Read more
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.1X, used for authorization authentication
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q, used for VLAN tags
IEEE 802.1p, for service levels
IEEE 802.3x for flow control
IEEE 802.3ad, used for LACP port aggregation
Ethernet software features
filtration
802.1Q VLAN, port-based VLAN, IGMP v1/v2, GVRP, GMRP
Industrial agreement
EtherNet/IP, Modbus TCP
manage
IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, and DHCP Server/Client, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP
MIB
Mib-ii, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundant protocol
STP, MSTP, RSTP, LACP, Link aggregation, Turbo Chain, Turbo Ring v1/v2
secure
HTTPS/SSL, TACACS+, port lock, RADIUS, SSH, broadcast storm protection
Time service
NTP Server/Client, SNTP
Exchange characteristic
IGMP packet
256
Size of the MAC address table
8 K
** Maximum number of vlans
64
Packet buffer size
2 Mb
Priority queue
4
VLAN ID range
VID 1 to 4094
LED interface
LED indicator
PWR1, PWR2, FAULT, 10/100M (TP port), 100M (optical fiber port), 1000M (Gigabit port), MSTR/HEAD, CPLR/TAIL
Serial interface
Console port
RS-232 (TxD, RxD, GND), 8-PIN RJ45 (115200, n, 8, 1)
DIP switch configuration
Ethernet interface
Turbo Ring, Master, Coupler, reservation
Power supply parameter
join
2 detachable 6-contact terminals
Input current
EDS-518A/518A-T: 0.44A@24 VDC
EDS-518A-MM-SC/MM-ST/SS-SC series: 0.52A @ 24 VDC
EDS-518A-SS-SC-80:0.5a@ 24 VDC
Input voltage
24 VDC, redundant dual power input
Operating voltage
12 to 45 VDC
Overload current protection
support
Reverse protection
support
Mechanical characteristic
shell
metal
IP level
IP30
dimension
94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)
weight
1630 g (3.60 lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
Standard models: 0 to 60°C (32 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
secure
EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power supply: 1 kV; Signal: 0.5kV
IEC 61000-4-5 Surge: Power supply: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Maritime affairs
DNV-GL, NK
strike
IEC 60068-2-27
Vibration
IEC 60068-2-6
Free falling body
IEC 60068-2-31
MTBF
time
250,966 hours
Standard
Telcordia (Bellcore), GB
This article introduces the EDS-518A-MM-ST-T products of MOXA/ MOsa industrial network management switch. If you are interested in MOXA/ MOsa switch, please contact our staff. We look forward to your call and hope that our technology and service can bring you a better experience
