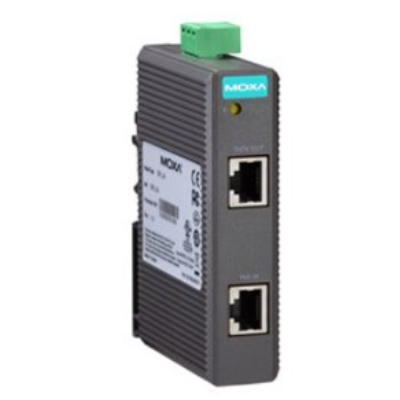

The MOXA/ Mosa PoE separator SPL-24-T, the main advantage of PoE is that data and power can be transferred to Ethernet devices using standard Ethernet CAT5 cables. Moxa's SPL-24 PoE separator acts as a power receiving device (PD) to split data and power and transfer data to Ethernet devices. When using Moxa devices, power and data can be transmitted from the power supply device (PSE) up to 100 meters (328 ft) away.
Product characteristics
Comply with IEEE 802.3af standard; Separate power and data from PoE devices
At 24 VDC, the power supply can reach 12.95 W
Short-circuit protection for power output
Support -40 to 75°C operating temperature (-T model)
Support guide mounting
Product parameter
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
1
Full/half duplex mode
Automatic MDI/MDI-X connection
Rate adaptive
PoE port (PD), 10/100BaseT (X), RJ45 connector
1
Full/half duplex mode
Automatic MDI/MDI-X connection
Rate adaptive
Standard
IEEE 802.3af, for PoE
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X)
Power supply parameter
Operating voltage
44 to 75 VDC (PoE)
Overload current protection
support
Output rated voltage
24 VDC
Output rated power
12.95W (** Max)
join
1 detachable 3-contact terminal
Mechanical characteristic
dimension
24.9 x 100 x 86.2mm (0.98 x 3.93 x 3.39 in)
Install
Rail mounting
IP level
IP30
weight
95 g (0.21 lb)
Working environment
Operating temperature
SPL-24:0 to 60°C (32 to 140°F)
SPL-24-T: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
Safety certification
secure
UL 60950-1
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Signal: 2 kV
IEC 61000-4-5 Surge: Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Free falling body
IEC 60068-2-31
strike
IEC 60068-2-27
Maritime affairs
DNV-GL, ABS, LR, NK
Vibration
IEC 60068-2-6
MTBF
time
5,104,703 hours
Standard
MIL-HDBK-217F
This article introduces the MOXA/ MOsa PoE separator SPL-24-T products, if you are interested in MOXA/ MOsa switch, please contact our staff, we look forward to your call, hope that our technology and service can bring you a better experience
