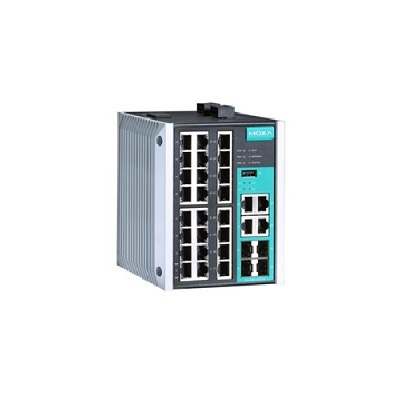

Description: The EDS-528E-4GTXSFP-LV, EDS-528E compact 28-port managed industrial Ethernet switch is equipped with 4 combo Gigabit Ethernet ports, built-in RJ45 port or SFP slot, which can be used for gigabit optical network communication applications. The 24 100 gigabit Ethernet ports support a variety of cable and fiber port combinations, enabling the EDS-528E series to provide a more flexible solution for network and application design. Ethernet redundancy technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP enhance system reliability and backbone network availability. The EDS-528E is also equipped with state-of-the-art management and safety features.
Product characteristics
Four gigabit and 24 100 Gigabit Ethernet ports, supporting cable and fiber
Support for Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches), and RSTP/STP/MSTP network redundancy
RADIUS, TACACS+, MAB authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and Sticky MAC addresses are used to enhance network security
Safety features based on IEC 62443
Supports device management and monitoring over EtherNet/IP, PROFINET and Modbus TCP protocols
MXstudio makes it easy to visualize industrial networks
V-ON™ supports millisecond level multicast data and video network recovery
Product parameter
Input/output module
Alarm function channel
1, pure resistive load: 1 A@24 VDC
Button
Reset button
Digital input channel
1
Digital input
+13 to +30 V indicates state 1
-30 to +3 V indicates state 0
** Maximum input current: 8 mA
Ethernet interface
10/100BaseT (X) port (RJ45 connector)
24
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
Combo port (10/100/1000BaseT (X) or 100/1000BaseSFP+)
4
10/100/1000BaseT (X) port (RJ45 connector)
Rate adaptive
Full/half duplex mode
Automatic MDI/MDI-X connection
Standard
IEEE 802.3, for 10BaseT
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1p, for service levels
IEEE 802.1Q, used for VLAN tags
IEEE 802.1X, used for authorization authentication
IEEE 802.3ad, used for LACP port aggregation
Ethernet software features
filtration
802.1Q VLAN, GVRP, IGMP v1/v2/v3, GMRP, port-based VLAN
Industrial agreement
EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
manage
LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, and Flow control (traffic control), IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIB
Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundant protocol
Link aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
secure
Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port lock, RADIUS, SSH, SMTP using TLS
Time service
NTP Server/Client, SNTP
Exchange characteristic
IGMP packet
2048
Size of the MAC address table
16 K
** Maximum number of vlans
64
Packet buffer size
1 Mb
Priority queue
4
VLAN ID range
VID 1 to 4094
USB interface
Memory port
USB Type A
LED interface
LED indicator
PWR1, PWR2 (LV model), STATE, FAULT, 10/100M (TP port), Gigabit Combo port, MSTR/HEAD, and CPLR/TAIL
Serial interface
Console port
USB Serial Port console (Type B connector)
DIP switch configuration
DIP switch
Turbo Ring, Master, Coupler, reservation
Power supply parameter
join
EDS-528E-4GTXSFP-HV series: 1 detachable 4-contact and 1 detachable 5-contact terminal
EDS-528E-4GTXSFP-LV Series: 2 detachable 4-contact terminals
Input current
EDS-528E-4GTXSFP-LV Series: 0.47A@24 VDC
EDS-528E-4GTXSFP-HV series: 0.11/ 0.055A@110/220 VDC, 0.21/ 0.13A@110/220 VAC
Input voltage
EDS-528E-4GTXSFP-LV Series: 12/24/48/-48 VDC, redundant dual power input
EDS-528E-4GTXSFP-HV Series: 110/220 VDC/VAC, single input
Operating voltage
EDS-528E-4GTXSFP-LV series: 9.6 to 60 VDC
EDS-528E-4GTXSFP-HV series: 88 to 300 VDC, 85 to 264 VAC
Overload current protection
support
Reverse protection
support
Mechanical characteristic
shell
metal
IP level
IP30
dimension
115.4 x 135 x 137 mm (4.54 x 5.31 x 5.39 inches)
weight
1850 g (4.08 lb)
Install
Rail mount, wall mount (with optional kit)
Working environment
Operating temperature
Standard models: -10 to 60°C (14 to 140°F)
Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
